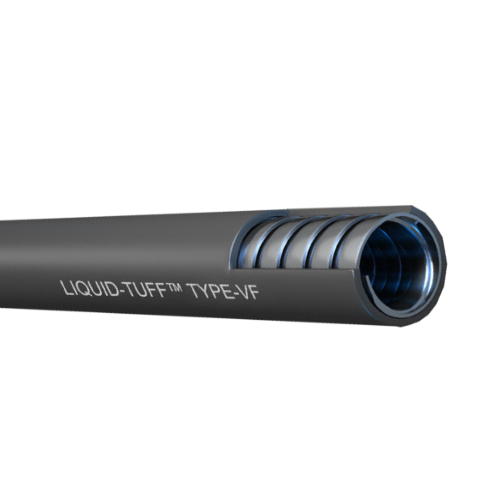

1" Trade Non-UL Liquid Tight VF Flexible Steel Conduit PVC Jacket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications:

• Vibration and movement absorbing

Also Known As:

Type Non-UL, Type LFMC, Liquid Tight Conduit, VF Flexible Conduit, PVC Jacket, Flexible Steel Conduit, 6104-30-00 AFC, 6104-45-00 AFC.

About:

• Mechanical and moisture protection for conductors
• Very flexible
• Sunlight resistant
• Flame retardant PVC jacket – Grey
• Hot dipped zinc galvanized low carbon steel core

Construction:

• The Liquid-Tuff Liquidtight, Flexible Steel Conduit, Type VF core shall be formed into an interlocked steel conduit from a zinc coated galvanized low carbon steel strip having a uniform width and thickness. The convolutions of the interlock shall be filed with a fibrous material designed to promote flexibility.
• A rugged moisture, oil and sunlight resistant polyvinyl chloride (PVC) jacket shall be extruded directly over the interlocked flexible steel core.

Temperature Rating:

• 60°C to –20°C Dry
• 60°C Wet
• 60°C Oil resistant

Specification:

• Trade Size: 1" inch
• Weight: 0.4725 lbs/ft
• Coil Length: 100ft
• Reel Length: 400ft
• External Diameter Over Conduit Max: 1.201 inch
• External Diameter Over Conduit Min: 1.226 inch
• External Diameter Over Jacket Min: 1.290 inch
• External Diameter Over Jacket Max: 1.315 inch
• Internal Diameter Min: 1.041 inch
• Internal Diameter Max: 1.066 inch
• Bend Radius: 6.5 inch
• Part Number: 6104-30-00
• Part Number: 6104-41-00
