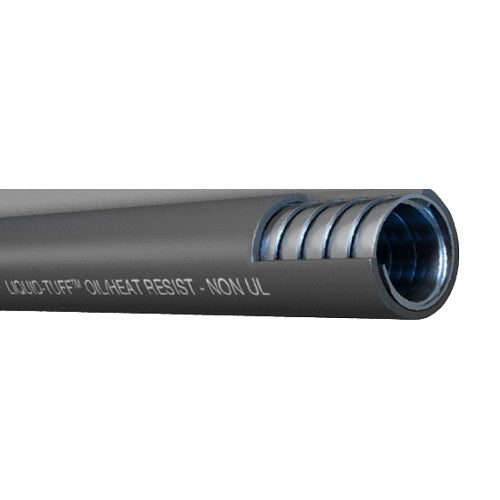

1-1/4" Trade Non-UL Oil Resistant High Temperature Liquid Tight Flexible Steel Conduit PVC Jacket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications:

• Oily and harsh chemical environments
• Provides mechanical protection for conductors
• Industrial applications
• Indoor or outdoor locations
• UV resistant

Also Known As:

Type Non-UL, Oil Resistant, High-Temperature Conduit, Liquid Tight Conduit, Flexible Conduit, PVC Jacket, Flexible Steel Conduit, 5905-24-00 AFC, 5905-40-00 AFC.

About:

• High-quality PVC jacket for oil resistance and high temperatures – Gray
• Hot dipped zinc galvanized low carbon steel core
• Excellent flexibility
• Non-UL liquidtight electrical raceway

Construction:

Constructed with a zinc-coated, galvanized low-carbon steel strip of uniform width and thickness, the Non-UL Oil-Resistant/High-Temperature Liquidtight Flexible Steel Conduit boasts enhanced flexibility thanks to the fibrous material filling the interlock convolutions.

Temperature Rating:

• 105°C/221°F Dry
• 60°C/140°F Wet
• 70°C/158°F Oil Resistant
• -30°C/22°F Low Temperature

Specification:

• Trade Size: 1-1/4" inch
• Coil Length: 50ft
• Reel Length: 200ft
• Weight: 0.6510 lbs/ft
• Bend Radius: 8 inch
• External Diameter Over Conduit Min: 1.540 inch
• External Diameter Over Conduit Max: 1.570 inch
• External Diameter Over Jacket Min: 1.630 inch
• External Diameter Over Jacket Max: 1.660 inch
• Internal Diameter Min: 1.380 inch
• Internal Diameter Max: 1.410 inch
• Part Number: 5905-24-00
• Part Number: 5905-40-00
