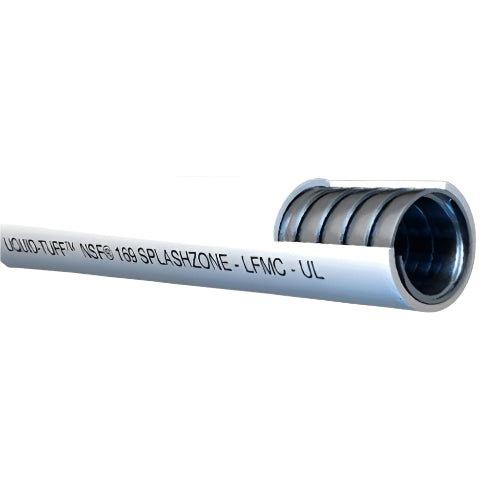

1" Trade UL Type LFMC Splash Zone Liquid Tight Conduit Flexible Steel PVC Jacket SZ04-30-00

1" Trade UL Type LFMC Splash Zone Liquid Tight Conduit Flexible Steel PVC Jacket SZ04-30-00

SKU: SKU: SZ04-30-00

Size
Select a Variant:
  • 1" Trade UL Type LFMC Splash Zone Liquid Tight Conduit Flexible Steel PVC Jacket SZ04-30-00
Qty:
Sold out
Shipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Applications:

• Food equipment & other devices associated with food production
• NSF 169 Component compliant
• For use in “splash zones” contiguous to food production – wash down areas PVC jacket does not promote the growth of bacteria
• Meat packing, restaurants, food processing, poultry packing, pharmaceutical facilities

Also Known As:

Hydrotite Conduit, Liquid Tight Conduit, Type LFMC, Splash Zone Conduit, Flexible Steel, PVC Jacket, Type UL, SZ04-30-00 AFC.

About:

• PVC jacket inhibits bacteria growth – color white, NSF 169 Component. Rugged moisture, oil, and sunlight-resistant polyvinyl chloride (PVC) jacket shall be applied directly over the flexible metal conduit with a wall thickness in accordance with Tabe 4.1 of UL 360. May be cleaned without degradation to the jacket with bleaching agents.
• NSF 169 Component for ‘splash zones’ in food production areas
• NSF 169 Component Special Purpose Food Equipment and Devices
• PVC jacket inhibits bacteria growth – color white
• Ease of cleaning/sterilization using bleach – no degradation of jacket
• Flexible rugged moisture, oil & sunlight resistant PVC jacket
• Hot dipped zinc galvanized low carbon steel core
• Excellent temperature range
• UL bonding strip 3/8” – 1 ¼” for grounding

Construction:

The Type UL Liquidtight Flexible Steel Conduit is constructed from a zinc-coated galvanized low carbon steel strip with consistent width and thickness. Its construction complies with UL 360 and NSF 169 Component standards. The finished Type LFMC dimensions are specified in Table 5.1 of UL 360.

Temperature Rating:

• 80°C/176°F Dry
• 60°C/140°F Wet
• 70°C/158°F Oily
• –30°C/–22F° Low temperature

Specification:

• Trade Size: 1" inch
• Coil Length:
 100ft
• Weight:
0.8295 lbs/ft
• Bend Radius: 6.5 inch

• Over Conduit Min: 1.201 inch
• Over Conduit Max: 1.226 inch
• Over Jacket Min: 1.290 inch
• Over Jacket Max: 1.315 inch
• Internal Diameter Min:
1.041 inch
• Internal Diameter Max
: 1.066 inch
• Part Number: SZ04-30-00
