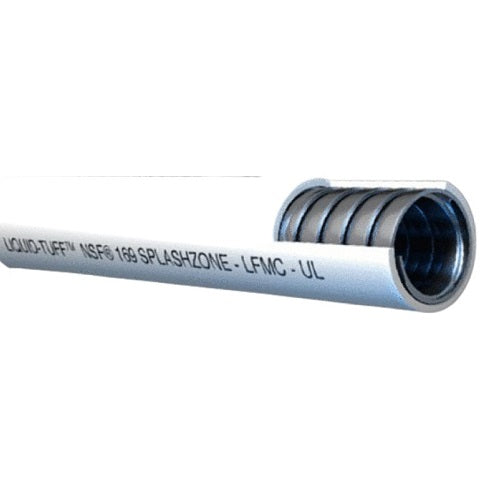

1-1/4" Trade UL Type LFMC Splash Zone Liquid Tight Conduit Flexible Steel PVC Jacket SZ05-24-00

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications:

• Food equipment & other devices associated with food production
• NSF 169 Component compliant
• For use in “splash zones” contiguous to food production – wash down areas PVC jacket does not promote the growth of bacteria
• Meat packing, restaurants, food processing, poultry packing, pharmaceutical facilities

Also Known As:

Hydrotite Conduit, Liquid Tight Conduit, Type LFMC, Splash Zone Conduit, Flexible Steel, PVC Jacket, Type UL, SZ05-24-00 AFC.

About:

• The PVC jacket, available in white and NSF 169 Component certified, inhibits bacterial growth. This rugged, moisture-, oil-, and sunlight-resistant polyvinyl chloride (PVC) jacket is applied directly over the flexible metal conduit, with wall thickness in accordance with Table 4.1 of UL 360. It can be cleaned with bleaching agents without compromising the jacket’s integrity.
• NSF 169 Component for ‘splash zones’ in food production areas
• NSF 169 Component Special Purpose Food Equipment and Devices
• Ease of cleaning/sterilization using bleach – no degradation of jacket
• Flexible rugged moisture, oil & sunlight resistant PVC jacket
• Hot dipped zinc galvanized low carbon steel core
• Excellent temperature range
• UL bonding strip 3/8” – 1 ¼” for grounding
• PVC jacket inhibits bacteria growth – color white

Construction:

Type UL Liquidtight Flexible Steel Conduit is constructed from a zinc-coated, galvanized low-carbon steel strip with uniform width and thickness. It meets the requirements of UL 360 and NSF 169 Component standards, with finished dimensions conforming to Table 5.1 of UL 360.

Temperature Rating:

• 80°C/176°F Dry
• 60°C/140°F Wet
• 70°C/158°F Oily
• –30°C/–22F° Low temperature

Specification:

• Trade Size: 1-1/4" inch
• Coil Length: 50ft
• Weight: 1.0815 lbs/ft
• Bend Radius: 8 inch
• Over Conduit Min: 1.540 inch
• Over Conduit Max: 1.570 inch
• Over Jacket Min: 1.630 inch
• Over Jacket Max: 1.660 inch
• Internal Diameter Min: 1.380 inch
• Internal Diameter Max: 1.410 inch
• Part Number: SZ05-24-00
