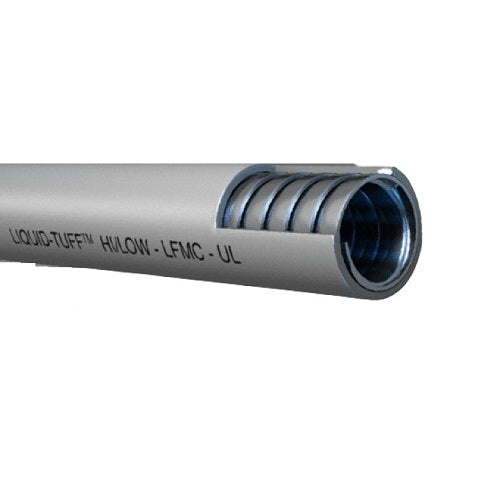

1-1/4" Trade UL Hi-Low Temperature Type LFMC Liquid Tight Flexible Steel Conduit PVC Jacket

Applications:

• High-temperature use
• Machine tool wiring applications
• Ideal for cold climate installations
• Direct burial and concrete embedment
• Bond wire for grounding in sizes 3/8“ – 11⁄4” NEC 250.118(6)
• Hazardous locations per NEC 501
• Site lighting and other outdoor wiring jobs

Also Known As:

Hi-Low Temperature Conduit, Liquid Tight Conduit, Type LFMC, Splash Zone Conduit, Flexible Steel, PVC Jacket, 6905-24-00 AFC.

About:

• Superior temperature ratings
• Hot dipped zinc galvanized low carbon steel core
• UL bonding strip 3/8“ – 11⁄4” for grounding
• Sunlight resistant
• Flame retardant PVC jacket – Grey

Construction:

The Type Hi-Low Liquidtight Flexible Steel Conduit is manufactured from a zinc-coated, galvanized low-carbon steel strip with consistent width and thickness. Its construction complies with UL 360 standards, and the finished Type Hi-Low LFMC dimensions meet the specifications outlined in Table 5.1 of UL 360, summarized in Table 3.

Temperature Rating:

• 105°C/221°F Dry
• –55°C/–67°F Low temperature
• 60°C Wet
• 70°C Oil resistant

Specification:

• Trade Size: 1-1/4" inch
• Coil Length: 50ft
• Weight: 1.1025 lbs/ft
• Bend Radius: 8 inch
• Over Conduit Min: 1.630 inch
• Over Conduit Max: 1.660 inch
• External Diameter Min: 1.540 inch
• External Diameter Max: 1.570 inch
• Internal Diameter Min: 1.380 inch
• Internal Diameter Max: 1.410 inch
• Part Number: 6905-24-00 AFC.
