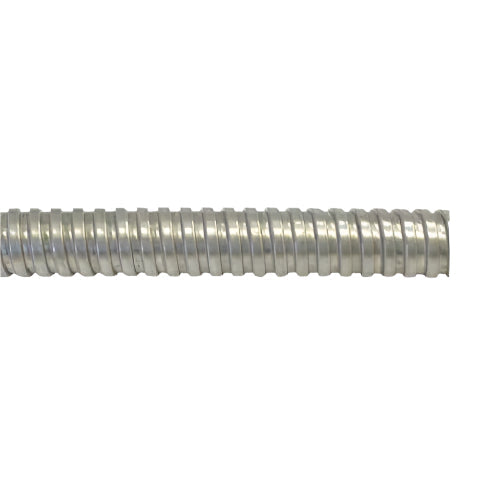

1 1/4" Trade FSS32 Stainless Steel Corrugated Conduit

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications: Metro rail stations and tunnels.

Allowable Ampacity for 1 1/4" Trade FSS32 Stainless Steel Corrugated Conduit:100 Amps

Also Known As:

AFC Cable, Corrugated Conduit, FSS Cable, Stainless Steel, Annularly Corrugated Conduit, Flexicon Metallic Conduit, FSS32 AFC.

About:

This annularly corrugated 316L stainless steel conduit offers a robust range of features designed for demanding applications. It has an IP68 rating, ensuring superior ingress protection, and operates within a wide temperature range of -100°C to +400°C. The conduit demonstrates high mechanical strength, with a pull-off strength of 100kg (for 20mm) and impressive compression strength of 1000kg per 100mm. Its inherent low fire hazard properties make it suitable for critical environments.

It is compliant with LUL Std S1085 (pending) and meets the EN 45545-2 to HL3 and NFPA 130 standards. The conduit also provides excellent corrosion resistance, oil and UV resistance, and offers EMC screening and anti-static properties, making it ideal for a variety of industrial, railway, and transportation applications.

Construction:

Annularly corrugated conduit made from 316L stainless steel, offering inherent low fire hazard performance, superior ingress protection (IP68), and exceptional corrosion resistance.

Color: Self-color, also available in black version on request

Specification:

Nominal Size: 32 mm
Outside Diameter: 32.5 mm
Inside Diameter: 25.4 mm
Trade Size: 1 1/4"
Reel Length: 25 m
Min Inside Bend Radius: 65 mm
Part Number: FSS32
