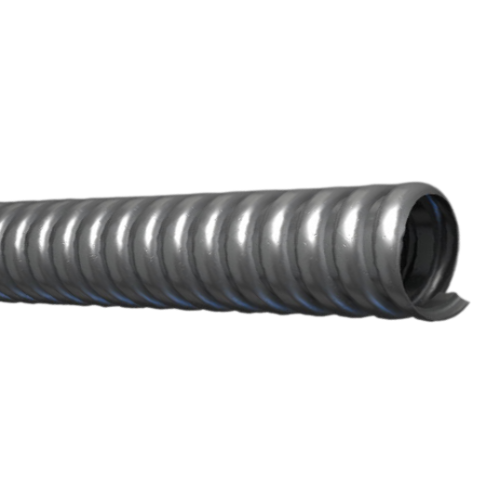

1-1/4" Trade Reduced Wall Aluminum Flexible Metal Conduit

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Allowable Ampacity for 1-1/4" Trade Reduced Wall Aluminum Flexible Metal Conduit: 100 Amps

Applications:

• Flexible metal raceway for electrical power, control and communication cables
• Motor leads
• Listed assemblies
• Listed wire fixtures
• Manufactured wiring systems

Also Known As:

Reduced Wall Conduit, Flexible Aluminum Conduit, Metal Conduit, AFC Conduit, Flexible Metal Conduit, Interlocking Conduit, Aluminum Metal Conduit, AFC Interlocking Conduit, AFC Reduced Wall, AFC Metal Conduit, AFC Aluminum Conduit, AFC Flexible Conduit, 5605-24-00, 5605-40-00.

About:

Lightweight Reduced Wall Aluminum Flexible Conduit, crafted from premium aluminum alloy, featuring an interlocking design for enhanced durability and flexibility.

References & Ratings:

• UL 1, UL 1479, File Reference E11831, CSA File Number 15035, CSA C22.2 No. 56 (trade size 3/8 only)
• Federal Specification WW-C–566C, (now superseded by UL 1)
• Cable Tray installations per NEC
• NEC 250.118(5), 300.22(C), 348, 430.223, 501.10(B)(2), 645.5
• Environmental Air-Handling space installation NEC 300.22(C)
• UL Classified 1, 2 and 3-hour Through-Penetration Fire Systems UL File R14141

Specification:

• Trade Size: 3/8" Inches
• Coil Length: 50 FT
• Reel Length: 200 FT
• Weight: 0.231 lbs/ft
• Bend Radius: 6.25 Inches
• Internal Diameter Min: 1.250 Inches
• Internal Diameter Max: 1.300 Inches
• External Diameter Min: 1.550 Inches
• External Diameter Max: 1.630 Inches
• Part Number: 5605-24-00, 5605-40-00
