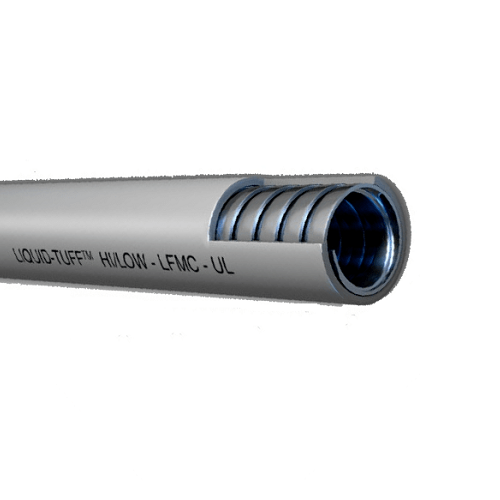

1-1/4" Trade UL Type LFMC Liquid Tight Flexible Steel Conduit PVC Jacket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications:

• Direct burial in earth
• Concrete embedment
• Sunlight and weather exposure
• Feeders and services for marina and boat yards
• Suitable for grounding per NEC 250.118(6), 3/8“ – 1 1⁄4”
• Hazardous location per NEC 501
• Raised computer room floors per NEC 645.5(D)
• Service entrance wiring up to 6 feet per NEC 230.43(15)

Also Known As:

Type UL, Type LFMC, Liquid Tight Conduit, Flexible Steel Conduit, PVC Jacket, Rugged Non-Metallic, 6205-24-BK AFC, 6205-40-BK AFC.

About:

• UL bonded strip 3/8“ – 1 1⁄4” for grounding
• UL Liquidtight all sizes
• Flame retardant PVC jacket
• Sunlight resistant
• Hot dipped zinc galvanized low carbon steel core
• Available in Grey, Black, Red, Orange, Yellow or Green

Construction:

• Type UL Liquidtight Flexible Steel Conduit is made from a zinc-coated, galvanized low-carbon steel strip with consistent width and thickness. It complies with UL 360 and CSA C22.2 No. 56 standards. The final dimensions align with Table 5.1 of UL 360 and Table 2 of CSA C22.2 No. 56.
• The durable moisture, oil, and sunlight resistant jacket made of polyvinyl chloride (PVC) shall be applied directly over the pliable steel conduit with a wall thickness that complies with the specifications in Table 4.1 of UL 360 and Table 4 of CSA C22.2 No.56, as summarized in Table 2. The jacket is available in grey, black, red, orange, yellow, or green colors.

Temperature Rating:

• 80°C to –30°C Dry
• 60°C Wet
• 70°C Oil resistant

Specification:

• Trade Size: 1-1/4" inch
• Coil Length: 100ft
• Reel Length: 500ft, 1000ft.
• Weight: 0.3255 lbs/ft
• Bend Radius: 8 inch
• External Diameter Over Conduit Max: 1.540 inch
• External Diameter Over Conduit Min: 1.570 inch
• External Diameter Over Jacket Min: 1.630 inch
• External Diameter Over Jacket Max: 1.660 inch
• Internal Diameter Min: 1.380 inch
• Internal Diameter Max: 1.410 inch
• Part Number: 6205-24-BK
• Part Number: 6205-40-BK
