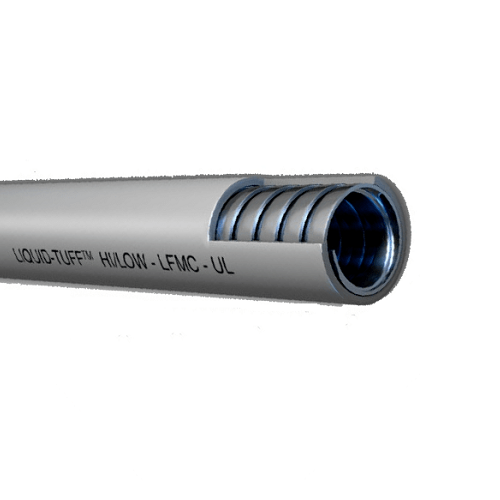

1/2" Trade UL Type LFMC Liquid Tight Flexible Steel Conduit PVC Jacket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications:

• Direct burial in earth
• Concrete embedment
• Feeders and services for marina and boat yards
• Sunlight and weather exposure
• Suitable for grounding per NEC 250.118(6), 3/8“ – 1 1⁄4”
• Hazardous location per NEC 501
• Raised computer room floors per NEC 645.5(D)
• Service entrance wiring up to 6 feet per NEC 230.43(15)

Also Known As:

Type UL, Type LFMC, Liquid Tight Conduit, Flexible Steel Conduit, PVC Jacket, Rugged Non-Metallic, 6202-30-00 AFC, 6202-45-00 AFC, 6202-60-00 AFC.

About:

• UL bonded strip 3/8“ – 1 1⁄4” for grounding
• UL Liquidtight all sizes
• Hot dipped zinc galvanized low carbon steel core
• Sunlight resistant
• Flame retardant PVC jacket
• Available in Grey, Black, Red, Orange, Yellow or Green

Construction:

• The UL-listed Type LFMC Liquid Tight Flexible Steel Conduit features zinc-coated galvanized low-carbon steel strip with uniform width and thickness, conforming to UL 360 and CSA C22.2 Number 56 standards. Its finished dimensions meet the specifications outlined in Table 5.1 of UL 360 and Table 2 of CSA C22.2 No. 56.
• Rugged moisture, oil and sunlight resistant polyvinyl chloride (PVC) jacket shall be applied directly over the flexible metal conduit with a wall thickness in accordance with Table 4.1 of UL 360 and Table 4 of CSA C22.2 No.56 which are summarized in Table 2. Jacket Colors: Grey, Black, Red, Orange, Yellow or Green

Temperature Rating:

• 80°C to –30°C Dry
• 60°C Wet
• 70°C Oil resistant

Specification:

• Trade Size: 1/2" inch
• Coil Length: 100ft
• Reel Length: 500ft, 1000ft.
• Weight: 0.3255 lbs/ft
• Bend Radius: 3.25 inch
• External Diameter Over Conduit Max: 0.732 inch
• External Diameter Over Conduit Min: 0.765 inch
• External Diameter Over Jacket Min: 0.820 inch
• External Diameter Over Jacket Max: 0.840 inch
• Internal Diameter Min: 0.622 inch
• Internal Diameter Max: 0.642 inch
• Part Number: 6202-30-00
• Part Number: 6202-45-00
• Part Number: 6202-60-00
