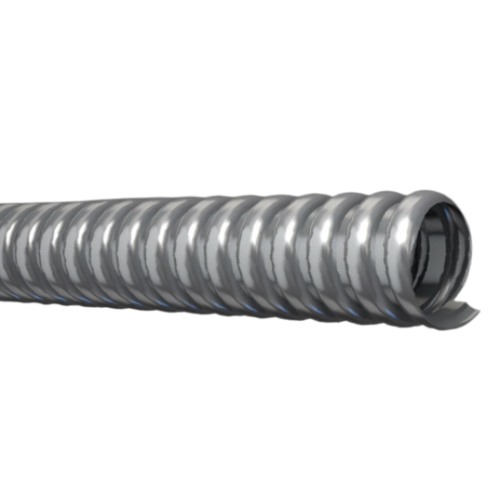

1" Trade Reduced Wall Flexible Steel Conduit Galvanized

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Allowable Ampacity for 1" Trade Reduced Wall Flexible Steel Conduit Galvanized: 100 Amps

Applications:

• Flexible metal raceway for electrical power, control and communication cables
• Motor leads
• Listed assemblies
• Listed wire fixtures
• Manufactured wiring systems

Also Known As:

Reduced Wall Conduit, Flexible Steel Conduit, AFC Conduit, Flexible Conduit, Interlocking Conduit, Galvanized Flexible Conduit, AFC Interlocking Conduit, AFC Reduced Wall, AFC Steel Conduit, AFC Flexible Conduit, AFC Galvanized Conduit, 5504-24-00, 5504-80-00

About:

Reduced wall flexible steel conduit is made from high-grade hot-dipped zinc galvanized low carbon steel, providing excellent durability and corrosion resistance. Its interlocking design ensures flexibility and ease of installation.

References & Ratings:

• UL 1, UL 1479, File Reference E11831, CSA File Number 15035, CSA C22.2 No. 56 (trade size 3/8 only)
• Cable Tray installations per NEC
• Federal Specification WW-C–566C, (now superseded by UL 1)
• NEC 250.118(5), 300.22(C), 348, 430.223, 501.10(B)(2), 645.5
• Environmental Air-Handling space installation NEC 300.22(C)
• UL Classified 1, 2 and 3-hour Through-Penetration Fire Systems UL File R14141

Specification:

• Trade Size: 1" Inches
• Coil Length: 50 FT
• Reel Length: 300 FT
• Weight: 0.5355 lbs/ft
• Internal Diameter Min: 1.000 Inches
• Internal Diameter Max: 1.040 Inches
• External Diameter Min: 1.300 Inches
• External Diameter Max: 1.380 Inches
• Part Number: 5504-24-00, 5504-80-00
