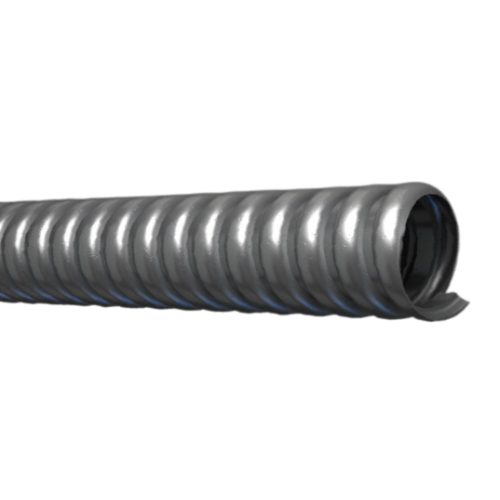

1-1/2" Trade Reduced Wall Aluminum Flexible Metal Conduit

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Allowable Ampacity for 1-1/2" Trade Reduced Wall Aluminum Flexible Metal Conduit: 100 Amps

Applications:

• Flexible metal raceway for electrical power, control and communication cables
• Motor leads
• Listed assemblies
• Listed wire fixtures
• Manufactured wiring systems

Also Known As:

Reduced Wall Conduit, Flexible Aluminum Conduit, Metal Conduit, AFC Conduit, Flexible Metal Conduit, Interlocking Conduit, Aluminum Metal Conduit, AFC Interlocking Conduit, AFC Reduced Wall, AFC Metal Conduit, AFC Aluminum Conduit, AFC Flexible Conduit, 5606-22-00, 5606-35-00, 5606-80-00

About:

Lightweight reduced wall aluminum flexible conduit crafted from premium aluminum alloy, featuring an interlocking design for enhanced flexibility and durability.

References & Ratings:

• UL 1, UL 1479, File Reference E11831, CSA File Number 15035, CSA C22.2 No. 56 (trade size 3/8 only)
• Cable Tray installations per NEC
• Federal Specification WW-C–566C, (now superseded by UL 1)
• NEC 250.118(5), 300.22(C), 348, 430.223, 501.10(B)(2), 645.5
• Environmental Air-Handling space installation NEC 300.22(C)
• UL Classified 1, 2 and 3-hour Through-Penetration Fire Systems UL File R14141

Specification:

• Trade Size: 1-1/2" Inches
• Weight: 0.273 lbs/ft
• Bend Radius: 7.50 Inches
• Internal Diameter Min: 1.500 Inches
• Internal Diameter Max: 1.575 Inches
• External Diameter Min: 1.850 Inches
• External Diameter Max: 1.950 Inches
• Part Number: 5606-22-00, 5606-35-00, 5606-80-00
