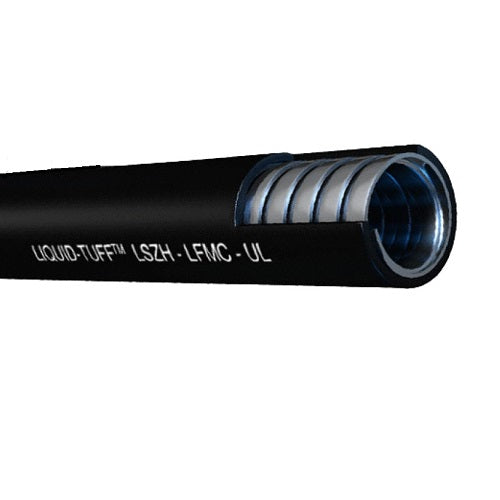

1-1/2" Trade UL And CSA LFMC Type LSZH Liquid Tight Flexible Metal Conduit TPU Jacket

Applications:

• Wherever limiting toxic material of combustion is needed
• Direct burial and concrete embedment
• Bond wire for grounding in sizes 3/8“ – 11⁄4” NEC 250.118(6)
• Hazardous locations per NEC 501

Also Known As:

Type UL, Type LFMC, Type LSZH, Liquid Tight Conduit, Flexible Conduit, TPU Jacket, Flexible Metal Conduit, Low Smoke Conduit, 6706-24-00 AFC.

About:

• Low smoke, zero halogen raceway
• Low toxicity generation characteristics
• Hot dipped zinc galvanized low carbon steel core
• Excellent temperature ratings
• Black thermoplastic polyurethane jacket
• UL copper bonding strip 3/8“ – 11⁄4” for grounding
• Sunlight resistant
• Flame retardant TPU jacket

Construction:

The LIQUID-TUFF LSZH Liquidtight Flexible Metal Conduit is manufactured from zinc-coated galvanized low carbon steel strip with uniform width and thickness. For trade sizes 3/8 through 1-1/4, a continuous bonding strip is integrated into the conduit core. Its construction complies with the UL 360 Standard. The Low Smoke Zero Halogen (LSZH) designation is certified through testing in accordance with ASTM 162 for Flame Spread Index, ASTM E662 for Smoke Density Generation, and Bombardier SMP–800C for Toxic Gas Generation. The finished conduit dimensions meet the specifications outlined in Table 5.1 of UL 360.

Temperature Rating:

• 80°C/176°F Dry
• 60°C/140°F Wet
• 70°C/158°F Oil resistant
• –40°C/-40°F Low Temperature

Specification:

• Trade Size: 1-1/2" inch
• Coil Length: 50ft
• Weight: 1.1235 lbs/ft
• Bend Radius: 9 inch
• Internal Diameter Min: 1.575 inch
• Internal Diameter Max: 1.600 inch
• External Diameter Over Conduit Min: 1.735 inch
• External Diameter Over Conduit Max: 1.770 inch
• External Diameter Over Jacket Min: 1.865 inch
• External Diameter Over Jacket Max: 1.900 inch
• Part Number: 6706-24-00
