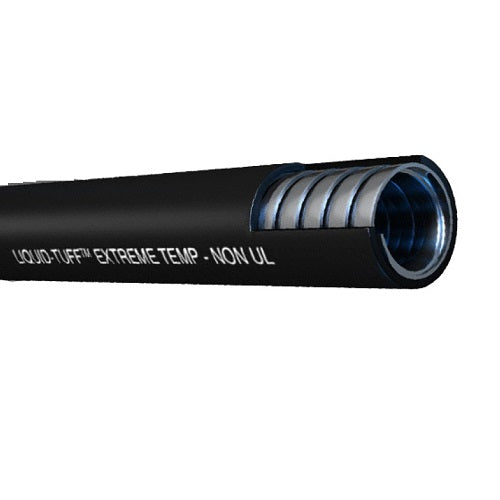

1" Trade Non-UL Extreme Temperature Liquid Tight Flexible Metal Conduit TPR Jacket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications:

• Resists extremes in temperature
• Very high operating temperatures
• For location requiring halogen free conduits
• Industrial applications
• Indoor or outdoor locations
• Provides mechanical protection for conductors

Also Known As:

Type Non-UL, Extreme Temperature Conduit, Liquid Tight Conduit, Flexible Conduit, TPR Jacket, Flexible Metal Conduit, 6804-30-00 AFC, 6804-41-00 AFC.

About:

• High quality thermoplastic rubber jacket – Black
• Halogen free
• Oil and ozone resistant
• Ability to withstand extremes in temperature
• Hot dipped zinc galvanized low carbon steel core
• Superior flexibility

Construction:

The extremely versatile and durable Non-UL Liquidtight Flexible Steel Conduit features a zinc coated galvanized low carbon steel strip with a consistent width and thickness, ensuring a secure and flexible core for extreme temperature conditions.

Temperature Rating:

• 150°C/302°F Dry – Continuous use
• 70°C Oily and wet
• –60°C/–76°F Low temperature brittle point

Specification:

• Trade Size: 1" inch
• Coil Length: 100ft
• Reel Length: 400ft
• External Diameter Over Jacket Min: 1.290 inch
• External Diameter Over Jacket Max: 1.315 inch
• Internal Diameter Min: 1.041 inch
• Internal Diameter Max: 1.066 inch
• Bend Radius: 6.5 inch
• Weight: 0.4200 lbs/ft
• Part Number: 6804-30-00
• Part Number: 6804-41-00
