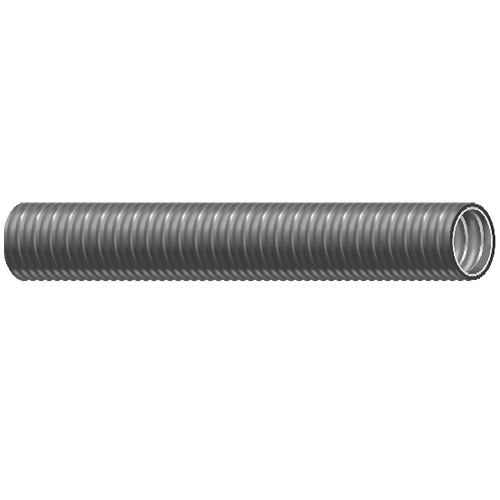

3/8 Liquidtight Flexible Nonmetallic Conduit

Description :

Ultratite Type NM is manufactured with rigid PVC reinforcement imbedded within a flexible PVC wall. The construction provides excellent impact and crush strength while remaining highly flexible. The conduit resists oils, mild acids and exposure to sunlight.

Features :

• NEC Type designation - Type LFNC-B (Liquidtight Flexible Nonmetallic Conduit)
• ANSI / NFPA-70, NEC Article 356
• UL Listed to Underwriters Laboratories Standard UL 1660
• Approved by Canadian Standards Association
• REACH/RoHS-2 (Chemical Limit) Compliant

Application :

• For the installation and protection of electrical conductors
• Motor circuits - for conductors of motor feeders, branch and control circuits
• Where the conditions of installation, operation, or maintenance require flexibility or protection from liquids, vapors, solids, or weather
• Agricultural buildings per NEC® 547.5
• Used in industrial and commercial applications for conveyors, blowers, cranes, air conditioners, machine tooling and lubrication equipment
• Exposed or concealed installations
• Applications requiring movement, crossover connections, or tight bends
• For direct burial and encased in concrete
• For flexible connections to swimming pool, spa, and hot tub motors per NEC® 680.21(A)(3) & 680.42(A)(1)
• Electric signs and outline lighting supply and secondary-circuit conductors per NEC® 600.7, 600.31 (1000 volts or less) & 600.32 (over 1000 volts)
• Hazardous locations - see Additional Applications Section on the following page for more details
