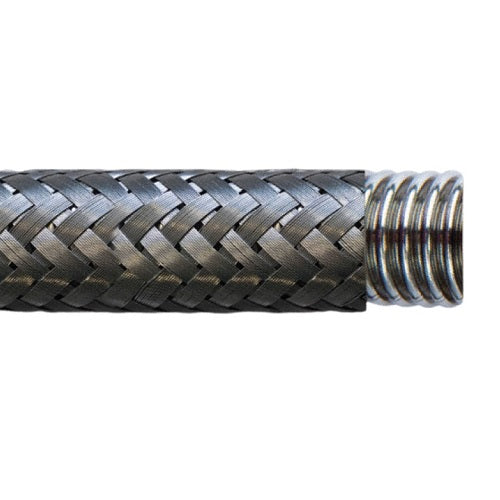

1 9/16" Trade FSSBRD40 Stainless Steel Corrugated Conduit With Overbraid

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications:

• Inherent Low Fire hazard performance with superior Ingress Protection (IP68), excellent corrosion resistance, and enhanced EMC performance together with abrasion resistance. Metro rail stations and tunnels.

Allowable Ampacity for 1 9/16" Trade FSSBRD40 Stainless Steel Corrugated Conduit With Overbraid:100 Amps

Also Known As:

AFC Cable, Corrugated Conduit, FSSBRD Cable, Stainless Steel, Overbraid Conduit, Flexicon Metallic Conduit, FSSBRD40 AFC.

About:

This product features an IP68 rating, ensuring full protection against dust and water immersion. It operates efficiently within a wide temperature range, from -100°C to +400°C. Designed with high mechanical strength and excellent abrasion resistance, it also offers a pull-off strength of 150kg at 20mm and a high compression strength of 1000kg per 100mm. The material has an inherent low fire hazard and meets the LUL Std S1085 (pending), as well as EN 45545-2 to HL3 and NFPA 130 standards. It provides outstanding corrosion resistance, along with oil and UV resistance. Additionally, it offers EMC screening as a standard feature and includes antistatic properties.

Construction:

Stainless steel (316L) annularly corrugated conduit. Inherent Low Fire hazard performance with superior Ingress Protection (IP68) and excellent corrosion resistance.

Color: Self-color

Specification:

Nominal Size: 40 mm
Trade Size: 1 9/16"
Reel Length: 10 m
Outside Diameter: 43.0 mm
Inside Diameter: 34.1 mm
Min Inside Bend Radius: 120 mm
Part Number: FSSBRD40
