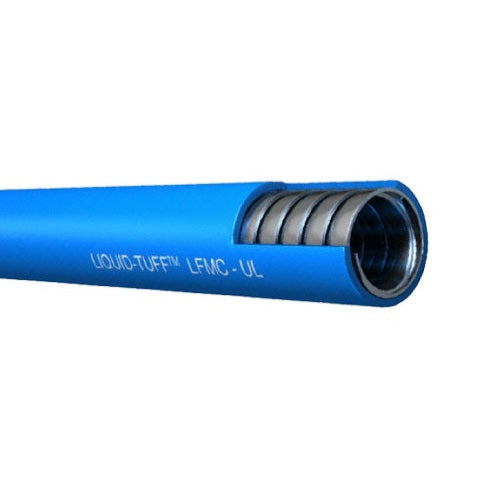

3" Trade UL Type LFMC Computer Blue Liquid Tight Flexible Metal Conduit PVC jacket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

3" Trade UL Type LFMC Computer Blue Liquid Tight Flexible Metal Conduit PVC jacket

Also Known As:

Type UL, Type LFMC, Liquid Tight Conduit, Flexible Metal Conduit, PVC Jacket, Computer Blue, Carbon Steel Core, AFC Cable, 6409-22-00 AFC, 6409-56-00 AFC.

Description:

• UL bonded strip 3/8″ – 11⁄4″ for grounding
• UL Liquidtight all sizes
• Sunlight resistant
• Flame retardant PVC jacket
• Hot dipped zinc galvanized low carbon steel core

Construction:

Our 3" Trade UL Type LFMC Computer Blue Liquid Tight Flexible Metal Conduit PVC jacket provides permanent circuit ground protection with its continuous bonding strip built into the core. For sizes 3/8" through 11/4", the bonding strip is sufficient. However, the NEC and Canadian Electric Code require a separate grounding conductor for trade sizes 11/2" and larger.

Temperature Rating:

• 80°C to –30°C Dry
• 60°C Wet
• 70°C Oil resistant

Specification:

• Trade Size: 3" inch
• Coil Length: 25ft
• Reel Length: 175ft
• Weight: 1.5225 lbs/ft
• External Diameter Over Conduit Max: 0.732 inch
• External Diameter Over Conduit Min: 0.765 inch
• External Diameter Over Jacket Min: 0.820 inch
• External Diameter Over Jacket Max: 0.840 inch
• Internal Diameter Min: 0.622 inch
• Internal Diameter Max: 0.642 inch
• Bend Radius: 3.25 inch
• Minimum Acceptable Jacket Thickness: 0.030 inch
• Part Number: 6409-22-00
• Part Number: 6409-56-00
