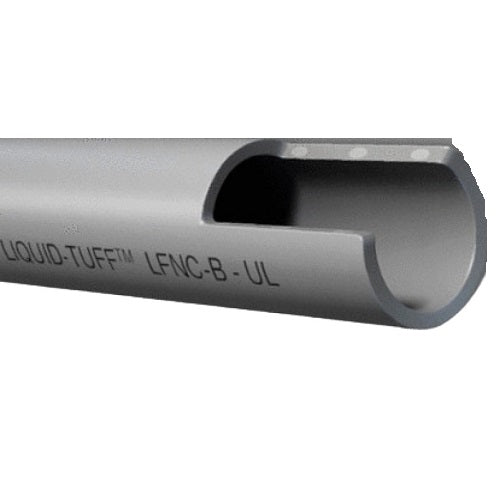

3/8" Trade UL Type LFNC-B Liquid Tight Flexible Non-Metallic Conduit PVC Jacket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

3/8" Trade UL Type LFNC-B Liquid Tight Flexible Non-Metallic Conduit PVC Jacket

Applications:

• 3/8″ through 2″ rated for direct burial and poured concrete
• Hazardous locations where Flexible Connections are required per NEC 501.10(B)(2)(4), 502.10(A)(2)(3), 502.10(B)(1)(1), 502.10(B)(2), 503.10(A)(3)(3), 503.10(B), 504.20
• Industrial and commercial applications
• Indoor or outdoor locations
• Suitable for pool and spa use
• Air conditioning and HVAC units

Also Known As:

Type UL, Type LFNC-B, Liquid Tight Conduit, Flexible Conduit, Non-Metallic Jacket, PVC Jacket, 6001-30-00 AFC.

Description:

• UL Listed
• Rugged Non-Metallic PVC
• Interior integral reinforced member within conduit wall
• Integral Type B construction per NEC 356.2(2)
• Rigid PVC spiral core for strength
• Non-conductive raceway
• Rated for concrete embedment
• Sunlight and oil resistant
• Outdoor applications including direct burial

Specification:

• Trade Size: 3/8" inch
• Coil Length: 100ft
• Weight: 0.1260 lbs/ft
• Internal Diameter Min: 0.484 inch
• Internal Diameter Max: 0.504 inch
• External Diameter Min: 0.690 inch
• External Diameter Max: 0.710 inch
• Bend Radius: 2 inch
• Part Number: 6001-30-00
