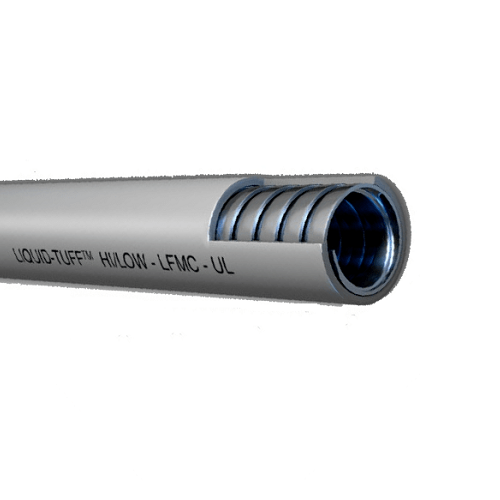

3/8" Trade UL Type LFMC Liquid Tight Flexible Steel Conduit PVC Jacket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications:

• Direct burial in earth
• Concrete embedment
• Sunlight and weather exposure
• Suitable for grounding per NEC 250.118(6), 3/8“ – 1 1⁄4”
• Hazardous location per NEC 501
• Raised computer room floors per NEC 645.5(D)
• Service entrance wiring up to 6 feet per NEC 230.43(15)
• Feeders and services for marina and boat yards

Also Known As:

Type UL, Type LFMC, Liquid Tight Conduit, Flexible Steel Conduit, PVC Jacket, Rugged Non-Metallic, 6201-30-BK AFC.

Description:

• UL bonded strip 3/8“ – 1 1⁄4” for grounding
• Flame retardant PVC jacket
• Hot dipped zinc galvanized low carbon steel core
• UL Liquidtight all sizes
• Sunlight resistant
• Available in Grey, Black, Red, Orange, Yellow or Green

Construction:

• Expertly protect your wiring with our 3/8" Trade UL Type LFMC Liquid Tight Flexible Steel Conduit PVC Jacket. Made from zinc-coated galvanized low carbon steel, it meets UL 360 and CSA C22.2 standards. Its consistent width and thickness provide reliable protection for your electrical systems.
• Durable polyvinyl chloride (PVC) jacket, resistant to moisture, oil, and sunlight, shall be applied directly over the flexible metal conduit with a wall thickness in accordance with Table 4.1 of UL 360 and Table 4 of CSA C22.2 No.56, summarized in Table 2. Available in Grey, Black, Red, Orange, Yellow, or Green.

Temperature Rating:

• 80°C to –30°C Dry
• 60°C Wet
• 70°C Oil resistant

Specification:

• Trade Size: 3/8" inch
• Coil Length: 100ft
• Weight: 0.2520 lbs/ft
• External Diameter Over Conduit Max: 0.594 inch
• External Diameter Over Conduit Min: 0.614 inch
• External Diameter Over Jacket Min: 0.690 inch
• External Diameter Over Jacket Max: 0.710 inch
• Internal Diameter Min: 0.484 inch
• Internal Diameter Max: 0.504 inch
• Bend Radius: 2 inch
• Part Number: 6201-30-BK
