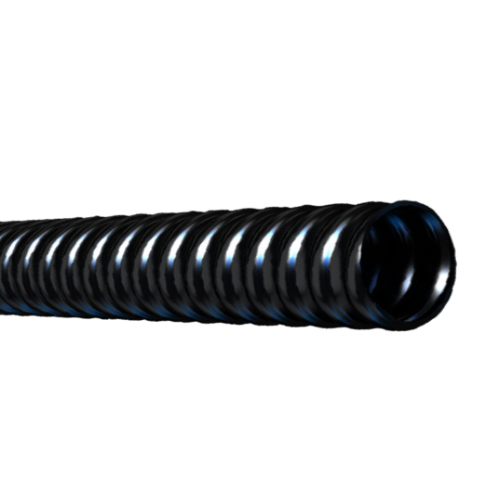

3/4" Trade Ultraflex Liquid Tight Flexible Conduit 160-021

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications:

• Recognized component for use in protection of insulated wire in assemblies or consoles of electrical apparatus. Use is to be determined by Underwriters Laboratories Inc.
• Non-UL liquidtight raceway

Also Known As:

Type Non-UL, Ultraflex Flexible Conduit, Type SJT Conduit, Liquid Tight Conduit, PVC Jacket, 160-021, Flexible Conduit.

About:

This extra-flexible, non-metallic mechanical protection tubing is a non-UL liquidtight raceway component made of corrugated, flame resistant PVC with an integral reinforcing member. Its non-conductive, black design provides optimal safety for your electrical needs.

Construction:

LIQUID-TUFF Liquid tight ULTRAFLEX MECHANICAL PROTECTION TUBING/CONDUIT has a circular cross section with a smooth polyvinyl chloride (PVC) inner surface and an integral reinforcing member within the conduit wall.

Temperature Rating:

• 60°C Dry
• 60°C Wet and oily

References & Ratings:

• Recognized component Liquid tight Mechanical Protection
• Tubing under UL File Number E79977
• UL1696 Standard for Non-Metallic Mechanical Protection Tubing
• CSA File LL69271
• CSA C22.2 No. 227.3

Grounding:

Where applicable a separate grounding conductor is required for all trade sizes.

Markings:

The product marking is contained on the outer carton.

Performance Tests:

The completed LIQUID-TUFF Liquid tight ULTRAFLEX TUBING and CONDUIT shall meet the performance requirements outlined below.

Performance Requirements:

• Heat Aging Test
• Cold Bend Test
• Heat Shock Test
• Crush Test
• Impact Test
• Oil Spray Test

Standards:

• CSA C22.3 No. 227.3
• UL1696
• Non-metallic Mechanical Protection Tubing

File:

• UL E79977
• CSA 69271

Specification:

• Trade Size: 3/4"
• Coil Length: 100 FT
• Weight: 0.1155 lbs/ft
• Bend Radius: 0.83 Inch
• Internal Diameter Min: 0.820 Inches
• Internal Diameter Max: 0.840 Inches
• External Diameter Min: 1.035 Inches
• External Diameter Max: 1.045 Inches
• Part Number: 160-021
