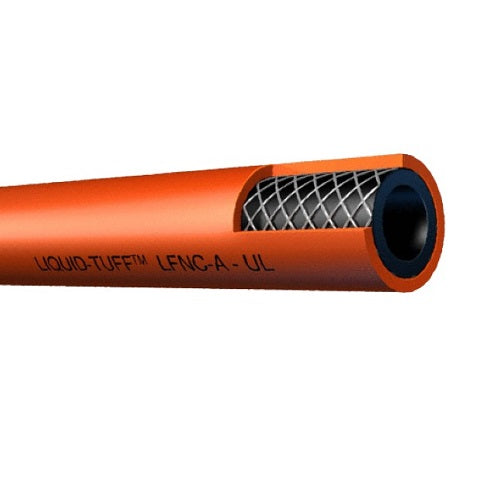

3/4" Trade UL Type LFNC-A Liquid Tight Flexible Non-Metallic Conduit PVC Jacket Orange

3/4" Trade UL Type LFNC-A Liquid Tight Flexible Non-Metallic Conduit PVC Jacket Orange

SKU: SKU: 6503-30-00

Size:
Variant:
  • 3/4" Trade UL Type LFNC-A Liquid Tight Flexible Non-Metallic Conduit PVC Jacket Orange
Sold out
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

3/4" Trade UL Type LFNC-A Liquid Tight Flexible Non-Metallic Conduit PVC Jacket Orange

Applications:

• Constant flexing and motion applications
• Signage and outdoor lighting over 1000 volts per 600.32 (A) (1)
• Hazardous locations per NEC 501
• Industrial and commercial applications
• Physical protection from abrasion of the conductors inside
• Indoor or outdoor locations

Also Known As:

Type UL, Type LFNC-A, Liquid Tight Conduit, Flexible Conduit, Non-Metallic Jacket, PVC Jacket Orange, 6503-30-00 AFC.

Description:

• Layered Type A construction per NEC 356.2(1)
• Nylon reinforced braid between two layers of PVC for strength and flexibility
• Flame retardant compound
• Mild acid resistance
• Non-conductive raceway
• Sunlight resistant
• Oil resistant

Construction:

Expertly designed, the 3/4" Trade UL Type LFNC-A Liquid Tight Flexible Non-Metallic Conduit is a durable and versatile option for protecting wiring in any environment. With a smooth and flexible polyvinyl chloride (PVC) inner layer, reinforced by an outer PVC jacket, this conduit meets the strict standards set by Table 1 of harmonized UL 1660/CSA C22.2 No. 227.2.1. its circular cross section ensures optimal performance and protection for your wiring needs.

Temperature Rating:

• 80°C/176°F Dry
• 60°C/140°F Wet
• 60°C/140°F Oil resistant

Specification:

• Trade Size: 3/4" inch
• Coil Length:
 100ft
 Weight: 0.1890 lbs/ft
• Wall Thickness: 0.035 inch
• Internal Diameter Min: 0.805 inch
• Internal Diameter Max: 0.845 inch
• External Diameter Min: 1.140 inch
• External Diameter Max
: 1.180 inch
• Bend Radius: 4.25 inch
• Part Number: 6503-30-00
