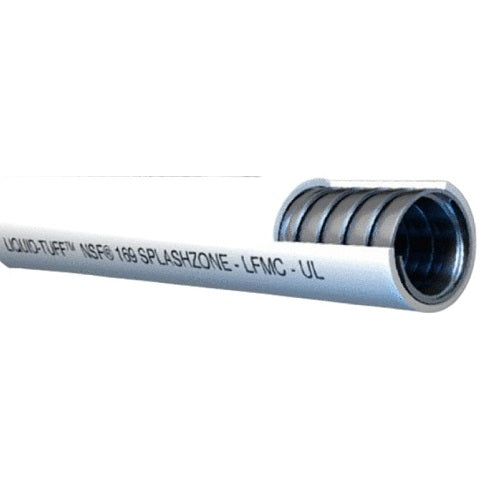

3/4" Trade UL Type LFMC Splash Zone Liquid Tight Conduit Flexible Steel PVC Jacket SZ03-30-00

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

3/4" Trade UL Type LFMC Splash Zone Liquid Tight Conduit Flexible Steel PVC Jacket SZ03-30-00

Applications:

• Food equipment & other devices associated with food production
• NSF 169 Component compliant
• For use in “splash zones” contiguous to food production – wash down areas PVC jacket does not promote the growth of bacteria
• Meat packing, restaurants, food processing, poultry packing, pharmaceutical facilities

Also Known As:

Hydrotite Conduit, Liquid Tight Conduit, Type LFMC, Splash Zone Conduit, Flexible Steel, PVC Jacket, Type UL, SZ03-30-00 AFC.

Description:

• The PVC jacket, which is white in color and complies with NSF 169 Component standards, effectively prevents bacteria growth. It is a durable, moisture, oil, and sunlight-resistant polyvinyl chloride (PVC) jacket that is applied directly onto the flexible metal conduit. The wall thickness of this jacket, as specified in Table 4.1 of UL 360, is designed to withstand various cleaning methods without being degraded by bleaching agents.
• NSF 169 Component for ‘splash zones’ in food production areas
• NSF 169 Component Special Purpose Food Equipment and Devices
• PVC jacket inhibits bacteria growth – color white
• Ease of cleaning/sterilization using bleach – no degradation of jacket
• Flexible rugged moisture, oil & sunlight resistant PVC jacket
• Hot dipped zinc galvanized low carbon steel core
• Excellent temperature range
• UL bonding strip 3/8” – 1 ¼” for grounding

Construction:

Crafted in accordance with UL 360 and NSF 169 criteria, the Trade UL Type LFMC Splash Zone Liquid Tight Conduit Flexible Steel PVC Jacket SZ03-30-00 offers a reliable solution for diverse uses. Composed of zinc-coated galvanized low carbon steel strip with uniform width and thickness, this conduit meets the dimensional requirements outlined in Table 5.1 of UL 360.

Temperature Rating:

• 80°C/176°F Dry
• 60°C/140°F Wet
• 70°C/158°F Oily
• –30°C/–22F° Low temperature

Specification:

• Trade Size: 3/4" inch
• Coil Length: 100ft
• Weight: 0.5145 lbs/ft
• Over Conduit Min: 0.930 inch
• Over Conduit Max: 0.960 inch
• Over Jacket Min: 1.030 inch
• Over Jacket Max: 1.050 inch
• Internal Diameter Min: 0.820 inch
• Internal Diameter Max: 0.840 inch
• Bend Radius: 4.25 inch
• Part Number: SZ03-30-00
