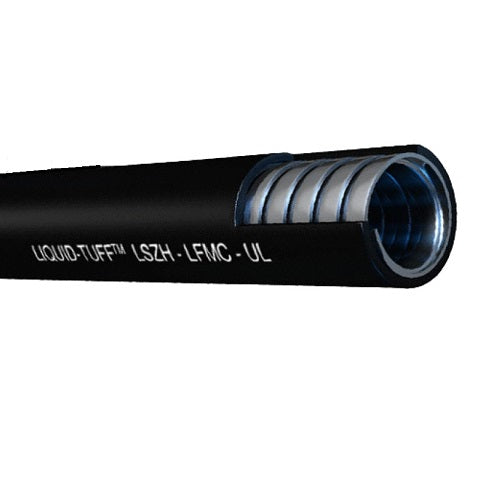

3/4" Trade UL And CSA LFMC Type LSZH Liquid Tight Flexible Metal Conduit TPU Jacket

3/4" Trade UL And CSA LFMC Type LSZH Liquid Tight Flexible Metal Conduit TPU Jacket

Applications:

• Wherever limiting toxic material of combustion is needed
• Direct burial and concrete embedment
• Bond wire for grounding in sizes 3/8“ – 11⁄4” NEC 250.118(6)
• Hazardous locations per NEC 501

Also Known As:

Type UL, Type LFMC, Type LSZH, Liquid Tight Conduit, Flexible Conduit, TPU Jacket, Flexible Metal Conduit, Low Smoke Conduit, 6703-30-00 AFC, 6703-45-00 AFC, 6703-60-00 AFC.

Description:

• Low smoke, zero halogen raceway
• Low toxicity generation characteristics
• Hot dipped zinc galvanized low carbon steel core
• Excellent temperature ratings
• Black thermoplastic polyurethane jacket
• UL copper bonding strip 3/8“ – 11⁄4” for grounding
• Sunlight resistant
• Flame retardant TPU jacket

Construction:

The LIQUID-TUFF LSZH Liquidtight Flexible Metal Conduit is made with uniform zinc coated galvanized low carbon steel strip with a continuous bonding strip in the conduit core for 3/8 - 1 1⁄4 trade sizes. Its construction adheres to the UL 360 Standard and its Low Smoke Zero Halogen designation is determined through testing according to ASTM 162, ASTM E662, and Bombardier SMP-800C. The finished conduit dimensions are in compliance with Table 5.1 of UL 360.

Temperature Rating:

• 80°C/176°F Dry
• 60°C/140°F Wet
• 70°C/158°F Oil resistant
• –40°C/-40°F Low Temperature

Specification:

• Trade Size: 3/4" inch
• Coil Length: 100ft
• Reel Length: 500ft, 1000ft.
• Weight: 0.4935 lbs/ft
• Internal Diameter Min: 0.820 inch
• Internal Diameter Max: 0.840 inch
• External Diameter Over Conduit Min: 0.930 inch
• External Diameter Over Conduit Max: 0.960 inch
• External Diameter Over Jacket Min: 1.030 inch
• External Diameter Over Jacket Max: 1.050 inch
• Bend Radius: 4.25 inch
• Part Number: 6703-30-00
• Part Number: 6703-45-00
• Part Number: 6703-60-00
