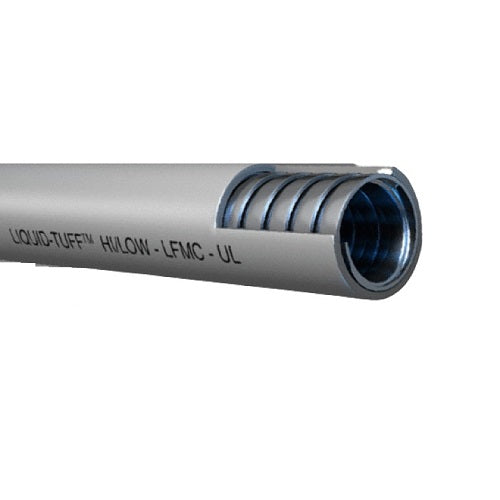

3-1/2" Trade UL Hi-Low Temperature Type LFMC Liquid Tight Flexible Steel Conduit PVC Jacket

3-1/2" Trade UL Hi-Low Temperature Type LFMC Liquid Tight Flexible Steel Conduit PVC Jacket

Applications:

• High-temperature use
• Machine tool wiring applications
• Ideal for cold climate installations
• Direct burial and concrete embedment
• Bond wire for grounding in sizes 3/8“ – 11⁄4” NEC 250.118(6)
• Hazardous locations per NEC 501
• Site lighting and other outdoor wiring jobs

Also Known As:

Hi-Low Temperature Conduit, Liquid Tight Conduit, Type LFMC, Splash Zone Conduit, Flexible Steel, PVC Jacket, 6910-22-00 AFC.

Description:

• Superior temperature ratings
• Hot dipped zinc galvanized low carbon steel core
• UL bonding strip 3/8“ – 11⁄4” for grounding
• Sunlight resistant
• Flame retardant PVC jacket – Grey

Construction:

The Type Hi-Low Liquidtight Flexible Steel Conduit shall be formed from
a zinc coated galvanized low carbon steel strip having a uniform width and thickness. The construction shall be in accordance with UL 360. The finished Type Hi-Low LFMC dimensions shall be in accordance with Table 5.1 of UL 360 which is summarized in Table 3.

Temperature Rating:

• 105°C/221°F Dry
• –55°C/–67°F Low temperature
• 60°C Wet
• 70°C Oil resistant

Specification:

• Trade Size: 3-1/2" inch
• Coil Length: 25ft
• Weight: 2.4675 lbs/ft
• Over Conduit Min: 3.960 inch
• Over Conduit Max: 4.000 inch
• External Diameter Min: 3.720 inch
• External Diameter Max: 3.789 inch
• Internal Diameter Min: 3.500 inch
• Internal Diameter Max: 3.540 inch
• Bend Radius: 20 inch
• Part Number: 6910-22-00
