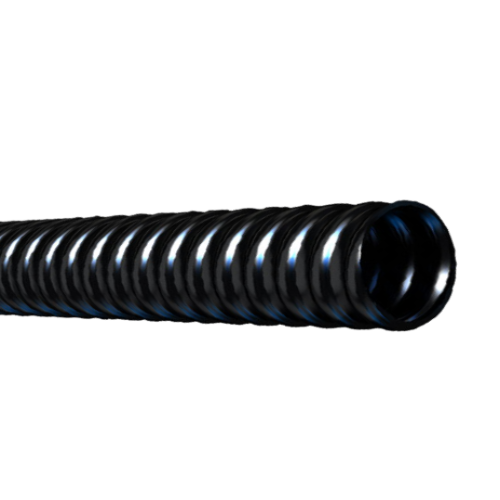

2" Trade Ultraflex Liquid Tight Flexible Conduit 160-051

Applications:

• Recognized component for use in protection of insulated wire in assemblies or consoles of electrical apparatus. Use is to be determined by Underwriters Laboratories Inc.
• Non-UL liquidtight raceway

Also Known As:

Type Non-UL, Ultraflex Flexible Conduit, Type SJT Conduit, Liquid Tight Conduit, PVC Jacket, 160-051, Flexible Conduit.

About:

The Non-UL liquidtight Raceway Component offers Extra-Flexible Non-Metallic Mechanical Protection Tubing. Made from corrugated flame-resistant PVC with an integral reinforcing member, this raceway is non-conductive and comes in a sleek black color.

Construction:

LIQUID-TUFF Liquidtight ULTRAFLEX MECHANICAL PROTECTION TUBING/CONDUIT has a circular cross section with a smooth polyvinyl chloride (PVC) inner surface and an integral reinforcing member within the conduit wall.

Temperature Rating:

• 60°C Dry
• 60°C Wet and oily

References & Ratings:

• Recognized component Liquid tight Mechanical Protection
• Tubing under UL File Number E79977
• UL1696 Standard for Non-Metallic Mechanical Protection Tubing
• CSA File LL69271
• CSA C22.2 No. 227.3

Grounding:

Where applicable a separate grounding conductor is required for all trade sizes.

Markings:

The product marking is contained on the outer carton.

Performance Tests:

The completed LIQUID-TUFF Liquid tight ULTRAFLEX TUBING and CONDUIT shall meet the performance requirements outlined below.

Performance Requirements:

• Heat Aging Test
• Cold Bend Test
• Heat Shock Test
• Oil Spray Test
• Crush Test
• Impact Test

Standards:

• CSA C22.3 No. 227.3
• UL1696
• Non-metallic Mechanical Protection Tubing

File:

• UL E79977
• CSA 69271

Specification:

• Trade Size: 2"
• Coil Length: 100 FT
• Weight: 0.3465 lbs/ft
• Bend Radius: 2.04 Inch
• Internal Diameter Min: 2.020 Inches
• Internal Diameter Max: 2.045 Inches
• External Diameter Min: 2.352 Inches
• External Diameter Max: 2.363 Inches
• Part Number: 160-051
