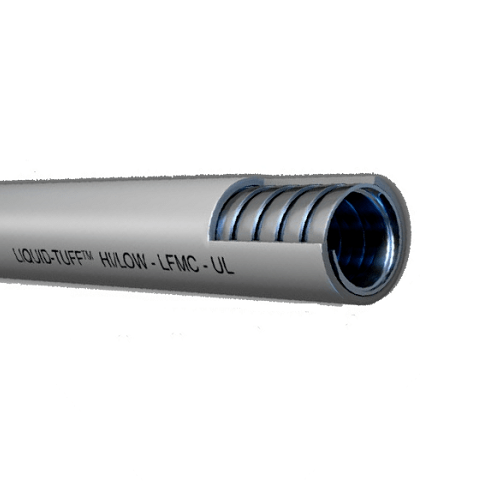

2-1/2" Trade UL Type LFMC Liquid Tight Flexible Steel Conduit PVC Jacket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

2-1/2" Trade UL Type LFMC Liquid Tight Flexible Steel Conduit PVC Jacket

Applications:

• Direct burial in earth
• Concrete embedment
• Sunlight and weather exposure
• Suitable for grounding per NEC 250.118(6), 3/8“ – 1 1⁄4”
• Hazardous location per NEC 501
• Raised computer room floors per NEC 645.5(D)
• Service entrance wiring up to 6 feet per NEC 230.43(15)
• Feeders and services for marina and boat yards

Also Known As:

Type UL, Type LFMC, Liquid Tight Conduit, Flexible Steel Conduit, PVC Jacket, Rugged Non-Metallic, 6208-22-00 AFC, 6208-79-00 AFC.

Description:

• UL bonded strip 3/8“ – 1 1⁄4” for grounding
• Flame retardant PVC jacket
• Hot dipped zinc galvanized low carbon steel core
• UL Liquidtight all sizes
• Sunlight resistant
• Available in Grey, Black, Red, Orange, Yellow or Green

Construction:

• The Type UL Liquidtight Flexible Steel Conduit shall be formed from a zinc coated galvanized low carbon steel strip having a uniform width and thickness. The construction shall be in accordance with UL 360 and CSA C22.2 Number 56 requirements. The finished Type LFMC dimensions shall be in accordance with Table 5.1 of UL 360 and Table 2
of CSA C22.2 No. 56.
• The liquid tight flexible steel conduit has a PVC jacket that is resistant to moisture, oil, and sunlight. This jacket meets the wall thickness requirements outlined in Table 4.1 of UL 360 and Table 4 of CSA C22.2 No.56, both of which are summarized in Table 2. The jacket is available in grey, black, red, orange, yellow, and green.

Temperature Rating:

• 80°C to –30°C Dry
• 60°C Wet
• 70°C Oil resistant

Specification:

• Trade Size: 2-1/2" inch
• Coil Length: 25ft
• Reel Length: 275ft
• Weight: 1.7745 lbs/ft
• External Diameter Over Conduit Max: 2.640 inch
• External Diameter Over Conduit Min: 2.675 inch
• External Diameter Over Jacket Min: 2.840 inch
• External Diameter Over Jacket Max: 2.875 inch
• Internal Diameter Min: 2.480 inch
• Internal Diameter Max: 2.505 inch
• Bend Radius: 14.62 inch
• Part Number: 6208-22-00
• Part Number: 6208-79-00
