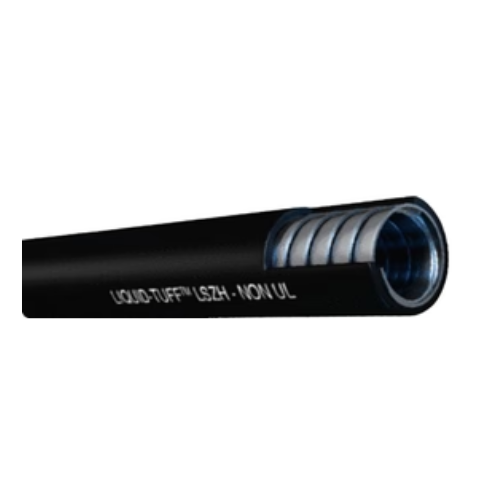

3/8" Trade Non-UL Type LSZH-VF Liquid Tight Flexible Metal Conduit TPU Jacket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

3/8" Trade Non-UL Type LSZH-VF Liquid Tight Flexible Metal Conduit TPU Jacket

Applications:

• Wherever limiting toxic material of combustion is needed
• 600 volt and lower circuits

Also Known As:

Type Non-UL, Type LSZH-VF, Metal Conduit, Flexible Conduit, TPU Jacket, Liquid Tight Conduit, Low smoke Conduit, 6751-30-00 AFC.

Description:

• Low smoke, zero halogen raceway
• Low toxicity generation characteristics
• Hot dipped zinc galvanized low carbon steel core
• Excellent temperature ratings
• Black thermoplastic polyurethane jacket
• Sunlight resistant
• Flame retardant TPU jacket

Construction:

The LIQUID-TUFF LSZH Liquidtight Flexible Metal Conduit shall be formed from zinc coated galvanized low carbon steel strip having a uniform width and thickness. The Low Smoke Zero Halogen designation shall be based upon testing to ASTM 162 – Flame Spread Index, ASTM E662 – Smoke Density Generation and Bombardier SMP–800C – Toxic Gas Generation. The finished LIQUID-TUFF LSZH Liquidtight Flexible Metal Conduit dimensions shall be in accordance with Table 3.

Temperature Rating:

• 80°C/176°F Dry
• 60°C/140°F Wet
• 70°C/158°F Oil resistant
• –40°C

Specification:

• Trade Size: 3/8" inch
• Coil Length: 100ft
• Weight: 0.2205 lbs/ft
• Min Average Thickness Of Jacket: 0.03 Inch
• Internal Diameter Min: 0.484 inch
• Internal Diameter Max: 0.504 inch
• External Diameter Over Jacket Min: 0.690 inch
• External Diameter Over Jacket Max: 0.710 inch
• Bend Radius: 2 inch
• Part Number: 6751-30-00
