2902450000 - S2T 2.5mm² Modular Terminal, 800V, 4 Connections, RoHS Compliant (Pack of 50)
2902450000 - S2T 2.5mm² Modular Terminal, 800V, 4 Connections, RoHS Compliant (Pack of 50)
SKU: SKU: 2902450000 Download PDF
- 2902450000 - S2T 2.5mm² Modular Terminal, 800V, 4 Connections, RoHS Compliant (Pack of 50)
- 2902450000 - S2T 2.5mm² Modular Terminal, 800V, 4 Connections, RoHS Compliant (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

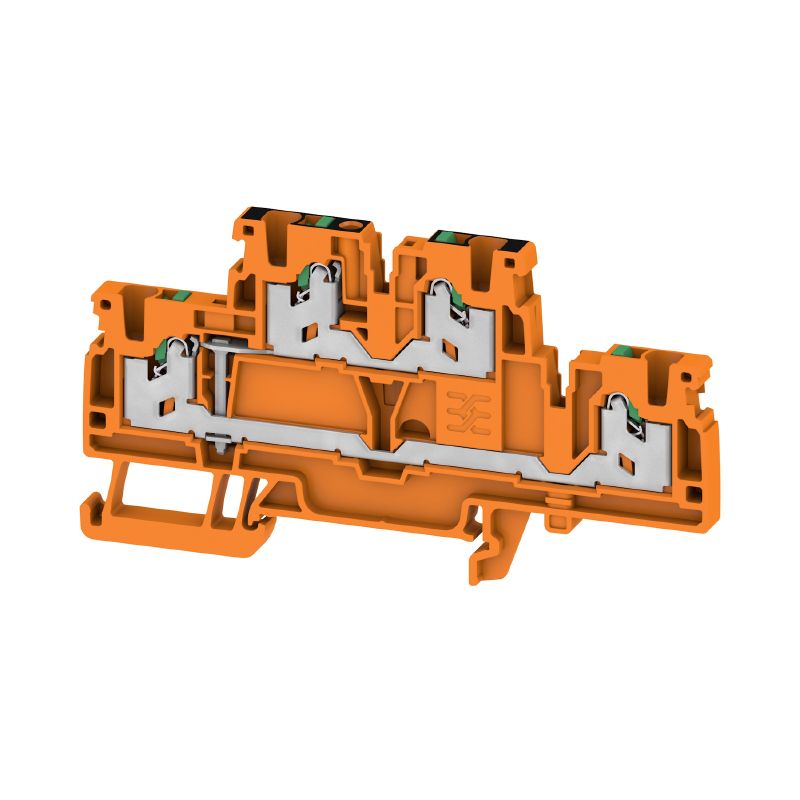

Introducing the S2T 25 VL OR multi-tier modular terminal, expertly crafted for easy snap-in installation This terminal features a wire cross-section capacity of 25 mm² and operates at a robust maximum voltage of 800 V Accommodating up to four connections across its two-tier design, it is perfect for space-saving arrangements on TS 35 mounting rails Made in full compliance with RoHS standards and boasting a V-0 flammability rating, this terminal ensures safety and reliability.
It performs optimally within a temperature range of -25 °C to 130 °C, making it suitable for a variety of applications.
Features and Benefits:
•Multi-tier design allows compact connection solutions.

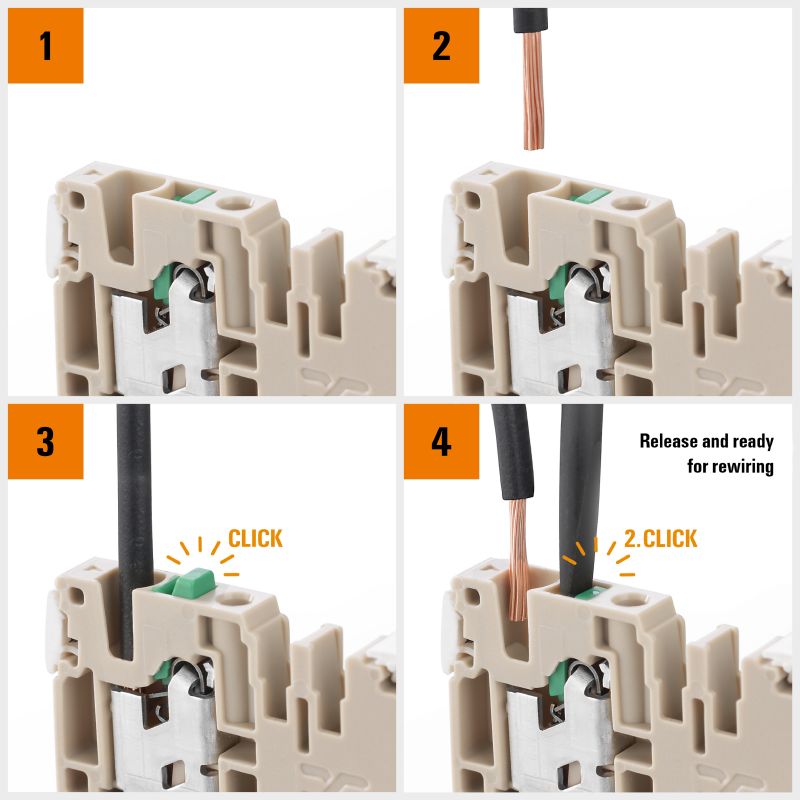

•Snap-in installation for easy setup.
•RoHS compliant material usage.
•V-0 flammability rating ensures high safety standards.
Specifications:
| Depth | 52 mm |
| Height | 95 mm |
| Width | 5.1 mm |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 800 V |
| Nominal current | 22 A |
| Current at maximum wires | 24 A |
| Storage temperature | -25 °C to 55 °C |
| Continuous operating temperature, min | -60 °C |
| Continuous operating temperature, max | 130 °C |
| Wire connection cross-section max | 2.5 mm² |
| Wire connection cross-section min | 0.34 mm² |
| UL 94 flammability rating | V-0 |
