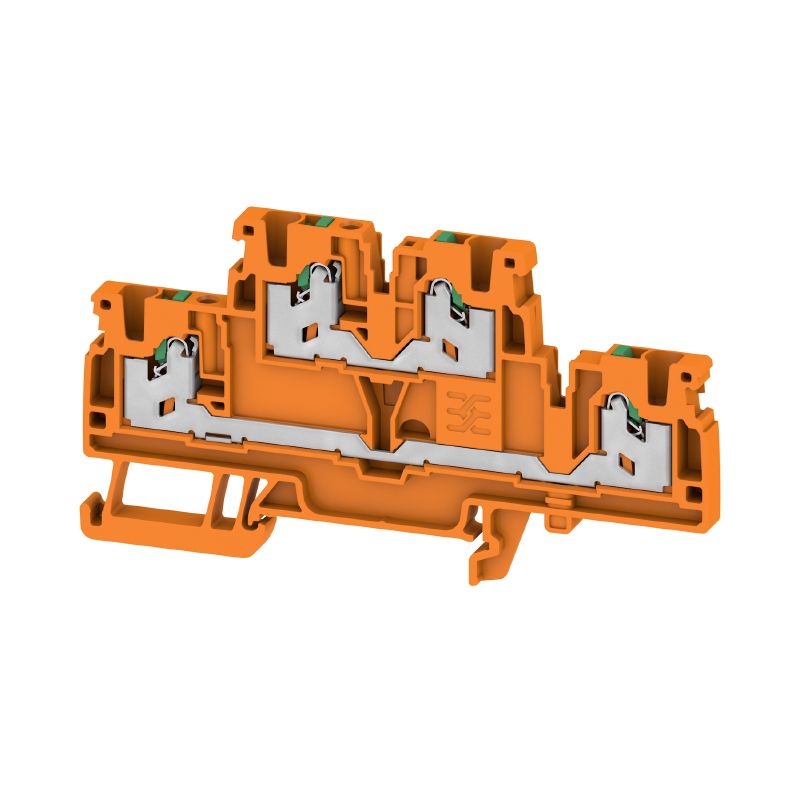

2902400000 - 2.5 mm² Snap-in Modular Terminal with 4 Connections (Pack of 50)
2902400000 - 2.5 mm² Snap-in Modular Terminal with 4 Connections (Pack of 50)
SKU: SKU: 2902400000 Download PDF
- 2902400000 - 2.5 mm² Snap-in Modular Terminal with 4 Connections (Pack of 50)
- 2902400000 - 2.5 mm² Snap-in Modular Terminal with 4 Connections (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the S2T 25 OR modular terminal, expertly crafted with a snap-in design for effortless installation This versatile terminal supports a cross-section of 25 mm² and operates efficiently at a rated voltage of 800 V With the capacity for four connections across two levels, it is ideal for a range of applications Additionally, it meets RoHS compliance standards without exemptions and comes with UL certification for peace of mind.
Features and Benefits:
•Compliant with RoHS.
•UL approved.
•Snap-in installation.
•4 connection points.
•Functions at a maximum operating temperature of 130 °C.
Specifications:
| Depth | 52 mm |
| Height | 95 mm |
| Width | 5.1 mm |
| Net weight | 15.25 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temperature, min | -60 °C |
| Continuous operating temperature, max | 130 °C |
| Basic material | Wemid |
| Colour | orange |
| Rated voltage | 800 V |
| Nominal current | 22 A |
| Number of connections | 4 |
| Rated cross-section | 2.5 mm² |
| Surge voltage category | III |
| Volume resistance according to IEC | 1.33 mΩ |
