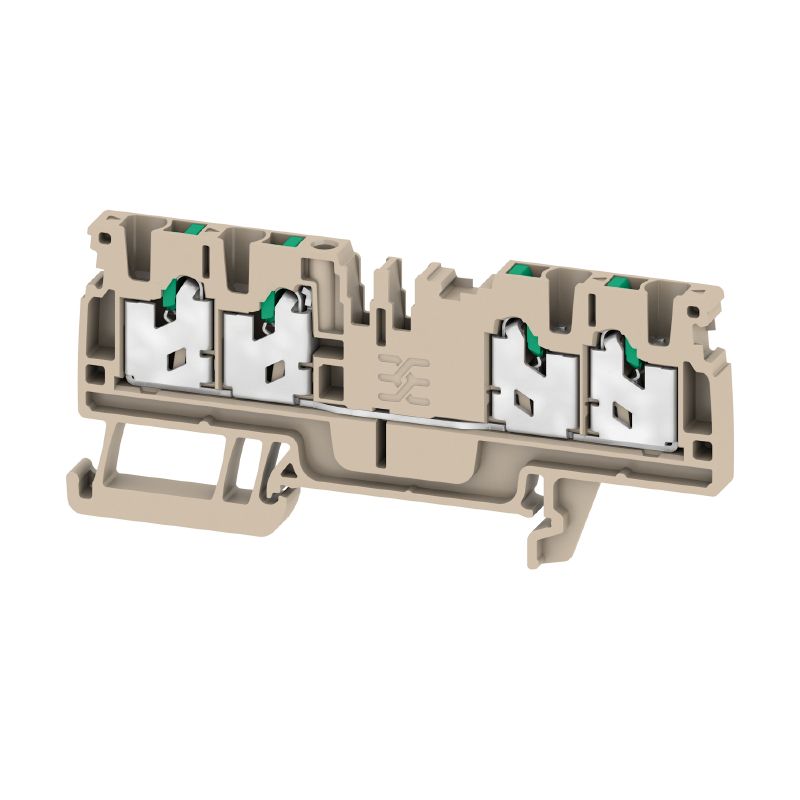

2674550000 - S4C 2.5mm² Terminal Block, 24A, Dark Beige (Pack of 100)
2674550000 - S4C 2.5mm² Terminal Block, 24A, Dark Beige (Pack of 100)
SKU: SKU: 2674550000 Download PDF
- 2674550000 - S4C 2.5mm² Terminal Block, 24A, Dark Beige (Pack of 100)
- 2674550000 - S4C 2.5mm² Terminal Block, 24A, Dark Beige (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the S4C 25 feed-through terminal block, engineered for easy SNAP IN installation This robust component supports a maximum nominal current of 24 A and can handle voltages of up to 800 V Featuring four connection slots, it is crafted from durable Wemid material in an attractive dark beige hue Additionally, this product meets RoHS standards and has received UL certifications, guaranteeing both quality and safety for your electrical needs.
Features and Benefits:
•Contains four connections.
•SNAP IN mounting style for ease of use.
•RoHS compliant without exemptions.
•UL certified for safety.
•Operating temperature range from -60 °C to 130 °C.
Specifications:
| Depth | 38 mm |
| Height | 84 mm |
| Width | 5.1 mm |
| Net weight | 13.696 g |
| Rated voltage | 800 V |
| Nominal current | 24 A |
| Rated cross-section | 2.5 mm² |
| Environmental Compliance | RoHS Compliant |
| Flammability Rating | V-0 |
| Mounting rail | TS 35 |
| Number of connections | 4 |
| Wire cross section max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 14 |
| Volume resistance according to IEC | 1.33 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
