Description:

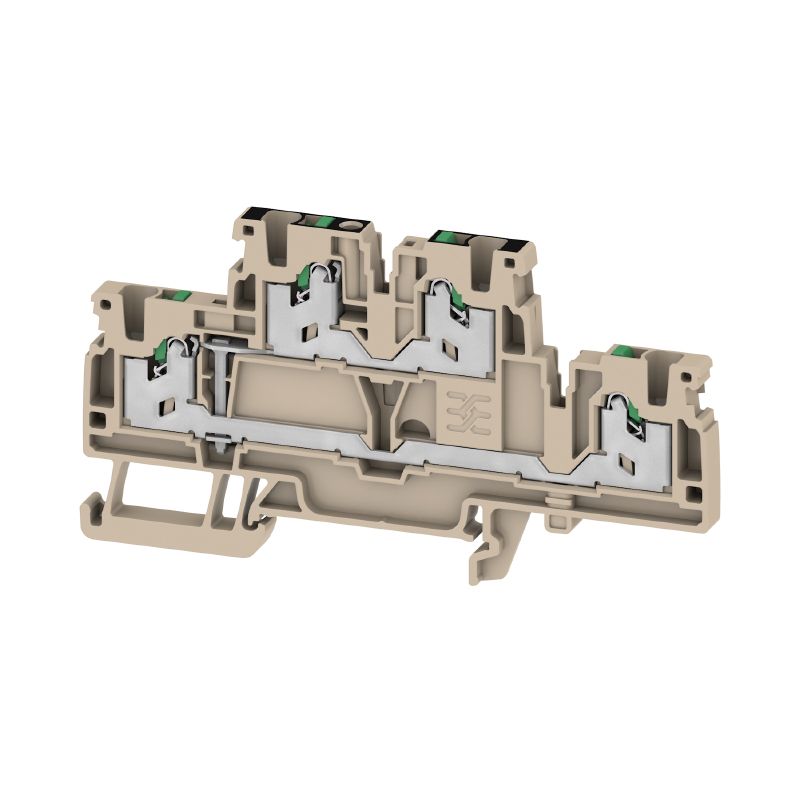

Introducing the S2T 25 VL multi-tier modular terminal, designed for optimal efficiency with its snap-in structure This terminal accommodates a wire size of 25 mm² and functions safely at a voltage of 800 V It features four connection points distributed across two levels, ensuring versatile installation Crafted from sturdy Wemid material, this terminal comes in an elegant dark beige shade and meets stringent RoHS regulations, in addition to being UL certified for reliable safety and performance.
Features and Benefits:
•Compact design with snap-in installation.
•Compatible with TS 35 mounting rail.
•Designed for a wire size of 2.5 mm².
Specifications:
| Depth | 52 mm |
| Height | 95 mm |
| Width | 5.1 mm |
| Net weight | 15.84 g |
| Storage temperature | -25 °C to 55 °C |
| Continuous operating temperature (min) | -60 °C |
| Continuous operating temperature (max) | 130 °C |
| Rated voltage | 800 V |
| Rated current | 22 A |
| Number of connections | 4 |
| Number of levels | 2 |
| Wire cross section max | 2.5 mm² |
| Wire cross section min | 0.34 mm² |
| Stripping length | 10 mm |
| Gauge to IEC 60947-1 | A2 |
