2874830000 - Blue 32A Snap-in Terminal Block, 4mm² Capacity (Pack of 50)
2874830000 - Blue 32A Snap-in Terminal Block, 4mm² Capacity (Pack of 50)
SKU: SKU: 2874830000 Download PDF
- 2874830000 - Blue 32A Snap-in Terminal Block, 4mm² Capacity (Pack of 50)
- 2874830000 - Blue 32A Snap-in Terminal Block, 4mm² Capacity (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

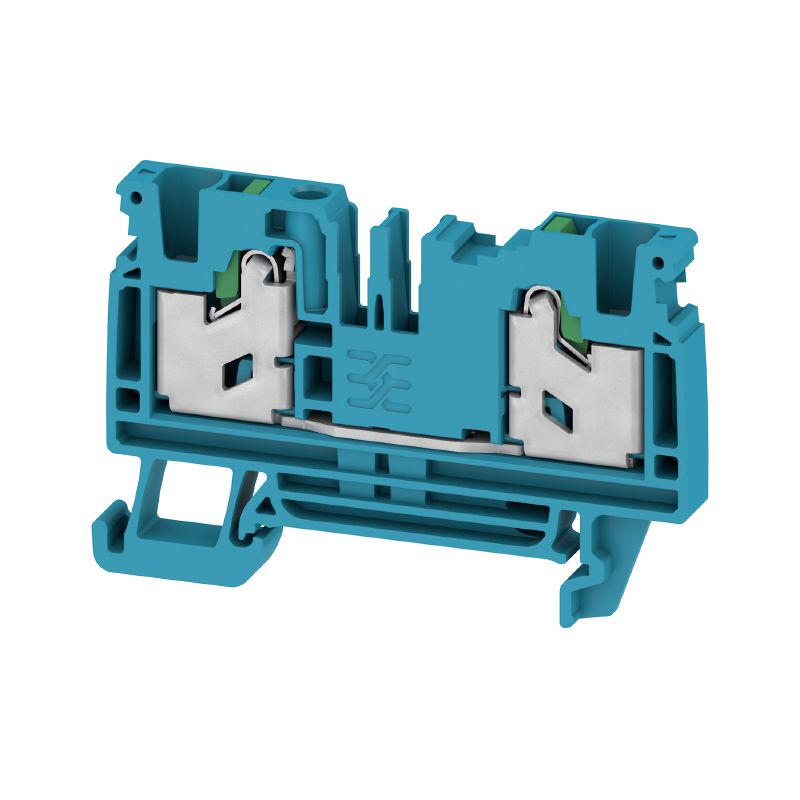

Introducing the S2C 4 BL snap-in feed-through terminal block, engineered for robust performance with a capacity of 4 mm² This component handles up to 32 A of current and is rated for voltages as high as 1000 V Featuring two connection points, it comes in an eye-catching blue hue With certifications including RoHS and IECEx, you can trust that it meets essential industry standards for quality and safety.
Features and Benefits:
•Compliant with RoHS without exemptions.

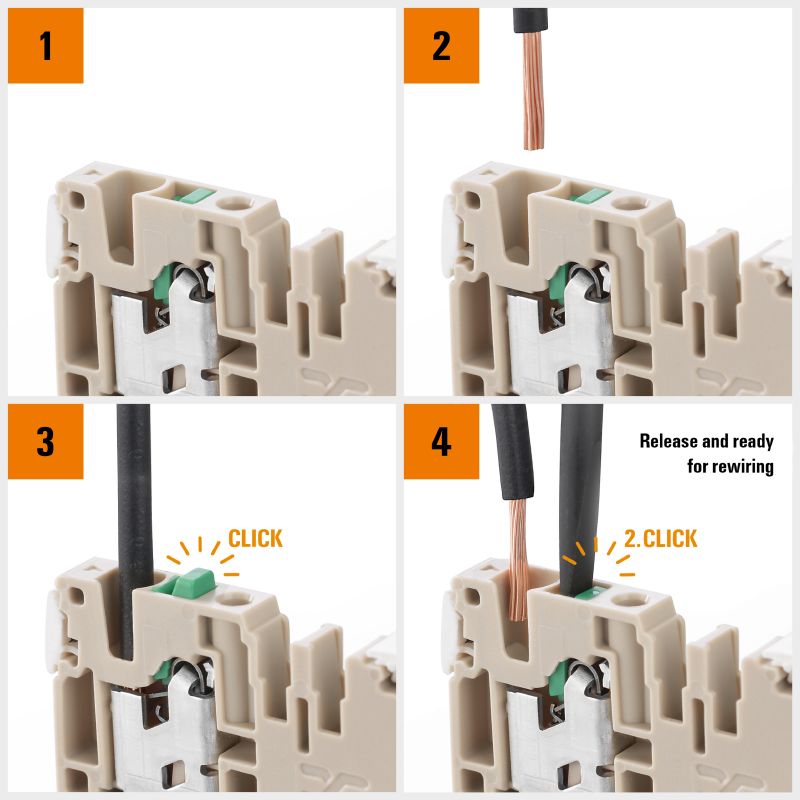

•Snap-in mounting design for ease of installation.
•Rated voltage of 1000 V and rated current of 32 A.
Specifications:
| Depth | 41.5 mm |
| Height | 62 mm |
| Width | 6.1 mm |
| Net weight | 13.229 g |
| Continuous operating temperature | -60 °C to 130 °C |
| Basic material | Wemid |
| UL 94 flammability rating | V-0 |
| Rated cross-section | 4 mm² |
| Rated voltage | 1000 V |
| Nominal current | 32 A |
| Volume resistance | 1 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Surge voltage category | III |
