Description:

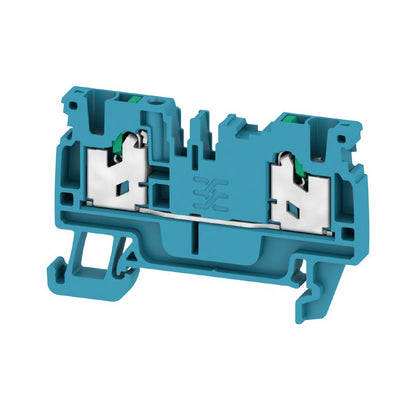

Introducing the S2C 25 BL feed-through terminal block, crafted in a striking blue hue This robust component accommodates wire gauges up to 25 mm² and supports a maximum current of 24 A, with voltage ratings reaching 800 V Featuring two connection points, this terminal block is fully compliant with RoHS and other pertinent industry standards, ensuring quality and safety in your electrical applications.
Features and Benefits:
•Color: blue.
•Temperature range: -60°C to 130°C.
•Snap-on mounting method.
•UL 94 flammability rating: V-0.
•Materials: Wemid.
•Number of connections: 2.
Specifications:
| Depth | 38 mm |
| Height | 59 mm |
| Width | 5.1 mm |
| Net weight | 8.447 g |
| Rated voltage | 800 V |
| Nominal current | 24 A |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 800 V |
| Current at maximum wires | 24 A |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Surge voltage category | III |
