2674540000 - Dark Beige 2.5 mm² Feed-through Terminal Block, 24 A, Snap-in (Pack of 100)
2674540000 - Dark Beige 2.5 mm² Feed-through Terminal Block, 24 A, Snap-in (Pack of 100)
SKU: SKU: 2674540000 Download PDF
- 2674540000 - Dark Beige 2.5 mm² Feed-through Terminal Block, 24 A, Snap-in (Pack of 100)
- 2674540000 - Dark Beige 2.5 mm² Feed-through Terminal Block, 24 A, Snap-in (Pack of 100)
Couldn't load pickup availability
Description:

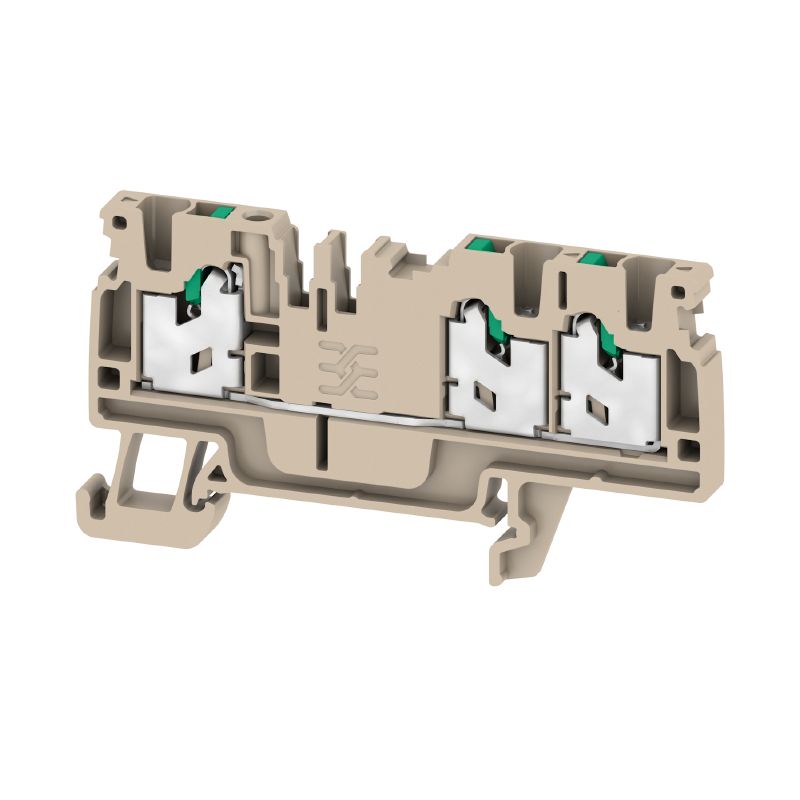

Introducing the S3C 25 feed-through terminal block, a reliable solution for simple assembly thanks to its snap-in design This terminal block comes in a sophisticated dark beige hue and accommodates wire sizes of up to 25 mm² With a robust current rating of 24 A and a maximum voltage capacity of 800 V, it is equipped to handle three connections efficiently Perfect for those seeking dependable performance in their electrical applications.
Features and Benefits:

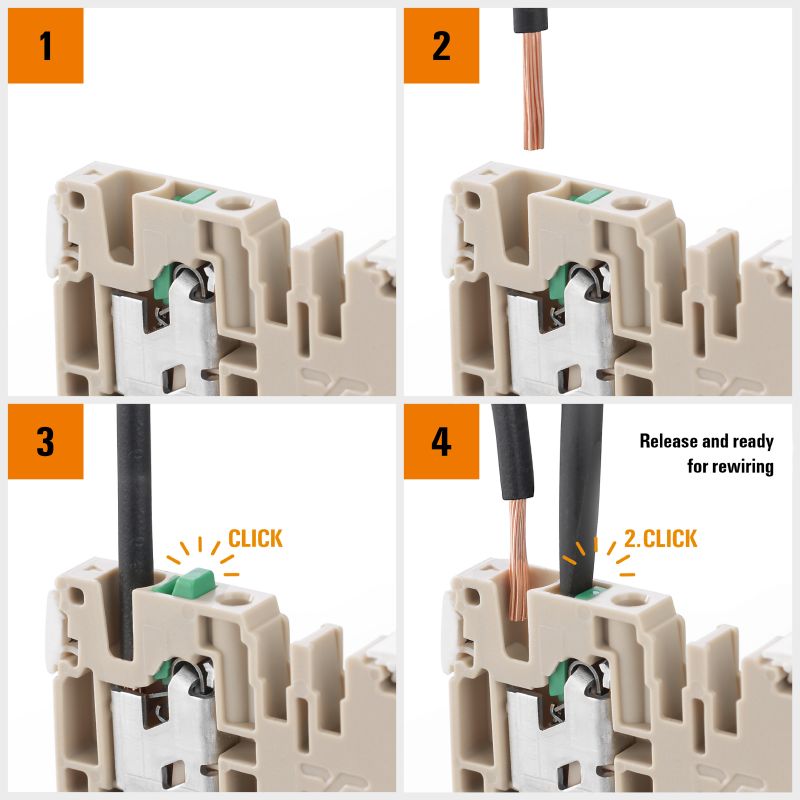

•SNAP IN connection type.
•Compact design allows for efficient use of space.
•Meets various safety and compliance standards.
Specifications:
| Depth | 38 mm |
| Height | 71.5 mm |
| Width | 5.1 mm |
| Storage temperature | -25 °C to 55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Nominal current | 24 A |
| Rated cross-section | 2.5 mm² |
| Max. voltage (ATEX) | 550 V |
| Current (ATEX) | 21 A |
