Description:

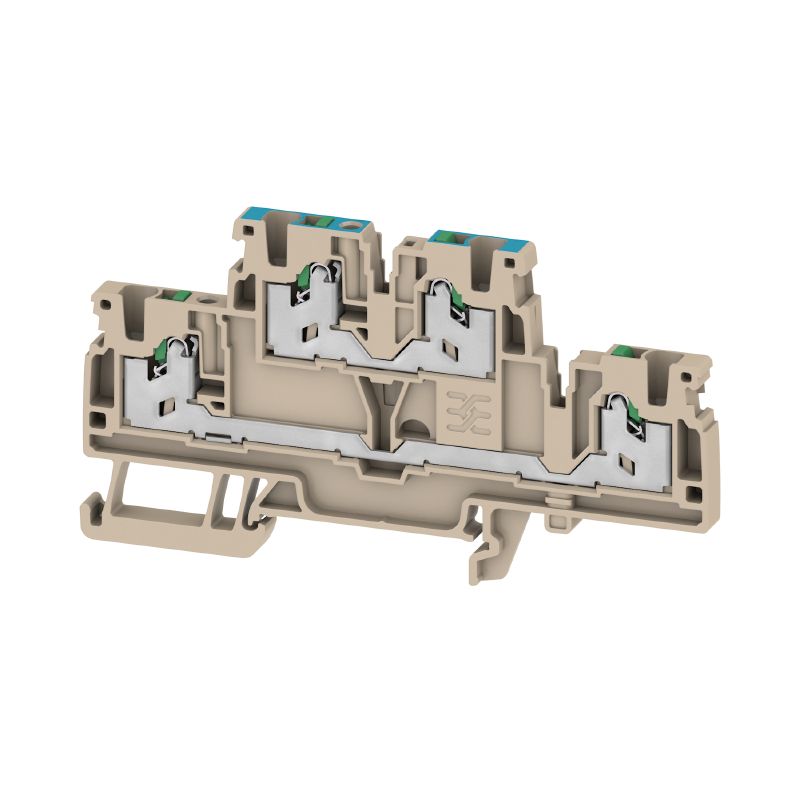

Introducing the S2T 25 N-FT modular terminal block, expertly crafted for multi-tier applications This innovative design features four connection points and a compact size suitable for 25 mm² wiring, ensuring compliance with RoHS regulations It operates efficiently in various environments, capable of withstanding voltages up to 800 V The terminal block can endure temperature extremes from -60 °C to +130 °C.
Made from durable Wemid material and finished in a sophisticated dark beige, it meets global standards for reliability and performance.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Snap-in connection type for easy installation.
•Can accommodate a maximum wire cross section of 2.5 mm².
•Rated impulse withstand voltage of 8 kV.
•Low volume resistance of 1.33 mΩ.
Specifications:
| Depth | 52 mm |
| Height | 95 mm |
| Width | 5.1 mm |
| Net weight | 15.177 g |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 800 V |
| Current | 22 A |
| Temperature (Storage) | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Number of connections | 4 |
| Mounting rail | TS 35 |
| Flammability rating | V-0 |
| Wire connection cross-section AWG, max. | AWG 12 |
| Wire connection cross-section AWG, min. | AWG 22 |
