Description:

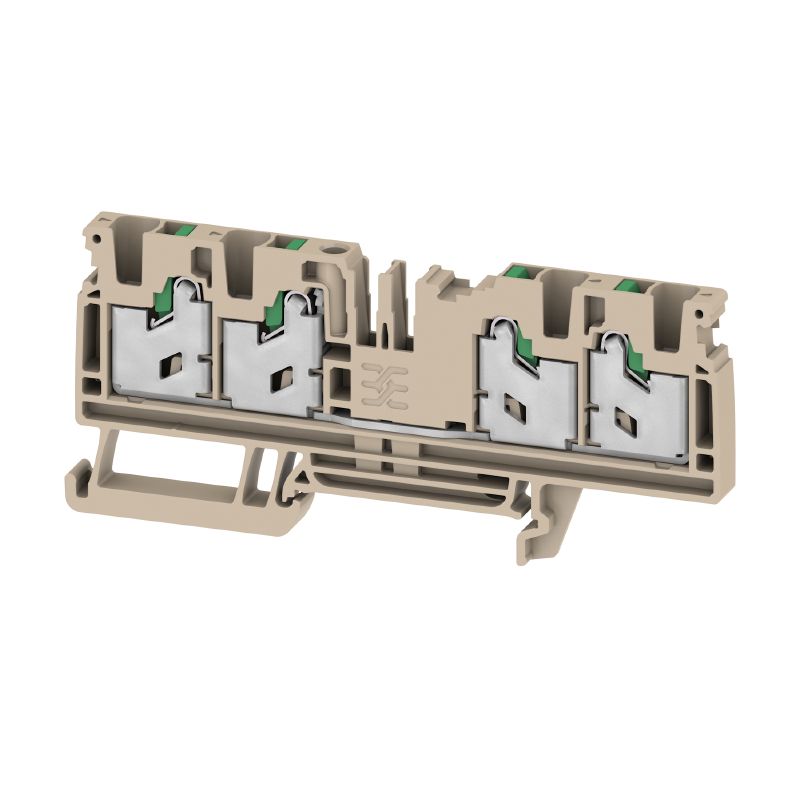

Introducing the S4C 4 feed-through terminal block, crafted with a convenient snap-in design in a sophisticated dark beige hue This robust block is capable of handling up to 32 Amperes and supports voltages reaching 1000 Volts Featuring four connection points, it adheres to RoHS standards for safety and environmental compliance Its compact dimensions measure 415 mm in depth, 94 mm in height, and 61 mm in width, with a net weight of approximately 22.
461 grams, making it a reliable choice for your electrical needs.
Features and Benefits:
•Compliant with RoHS without exemption.
•Snap-on mounting type.
•End cover plate is required.
•Suitable for TS 35 mounting rail.

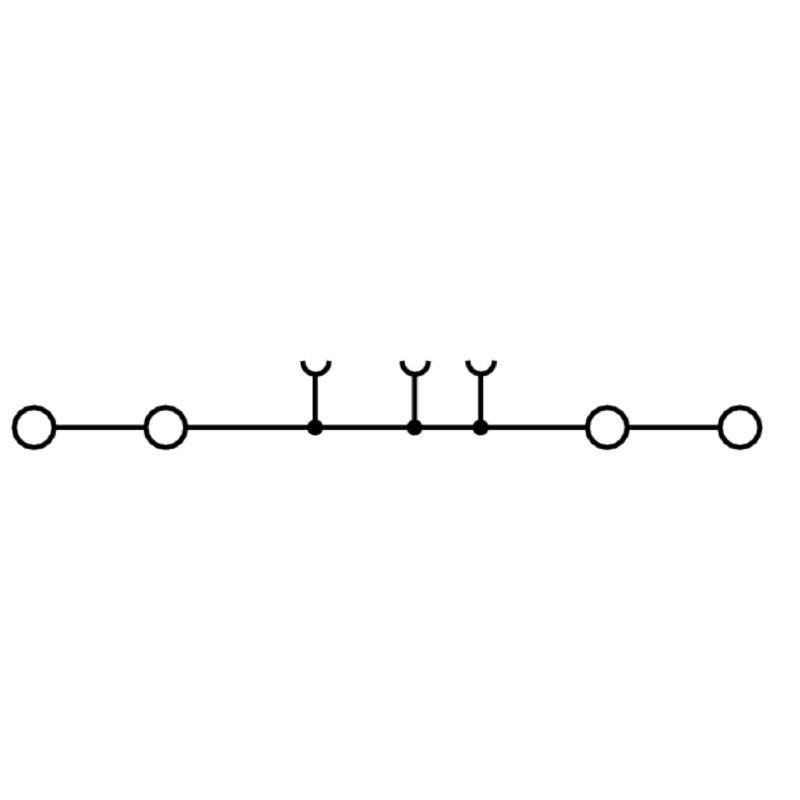

•Single potential connections with four clamping points per level.
Specifications:
| Depth | 41.5 mm |
| Height | 94 mm |
| Width | 6.1 mm |
| Wire cross section max | 6 mm² |
| Rated voltage | 1,000 V |
| Rated DC voltage | 1,000 V |
| Nominal current | 32 A |
| Rated cross-section | 4 mm² |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp. min | -60 °C |
| Continuous operating temp. max | 130 °C |
| UL 94 flammability rating | V-0 |
| Number of connections | 4 |
| Stripping length | 12 mm |
| Gauge to IEC 60947-1 | A4 |
| Pollution severity | 3 |
| Surge voltage category | III |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
