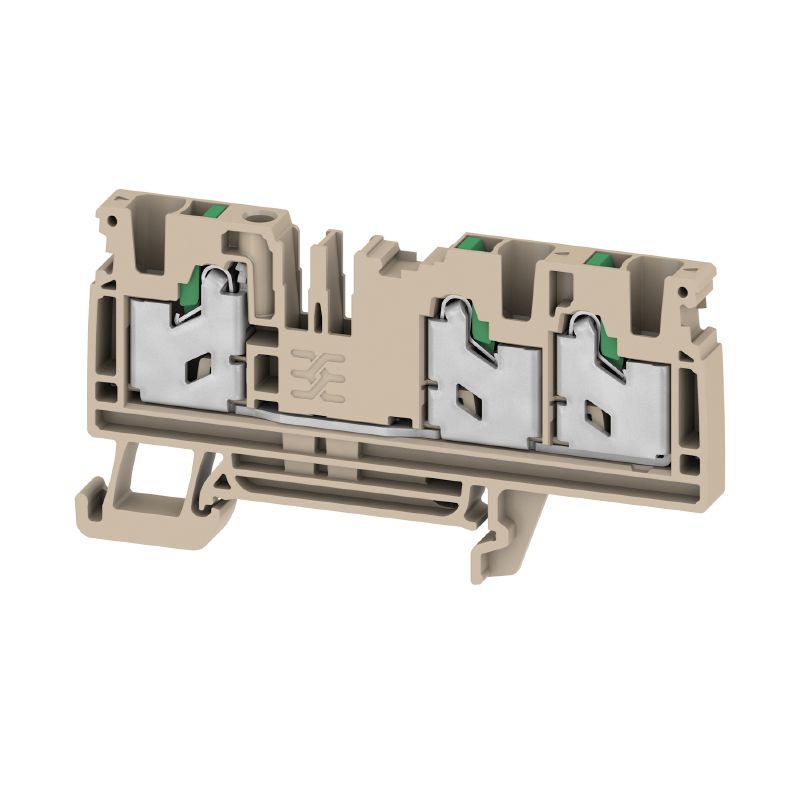

2874840000 - Dark Beige Feed-Through Terminal Block, 4mm², 32A (Pack of 50)
2874840000 - Dark Beige Feed-Through Terminal Block, 4mm², 32A (Pack of 50)
SKU: SKU: 2874840000 Download PDF
- 2874840000 - Dark Beige Feed-Through Terminal Block, 4mm², 32A (Pack of 50)
- 2874840000 - Dark Beige Feed-Through Terminal Block, 4mm², 32A (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing this innovative feed-through terminal block, designed with a convenient SNAP IN mechanism and finished in a sophisticated dark beige hue It supports wire cross-sections up to 4 mm² and is rated for a voltage of 1000 V along with a maximum current capacity of 32 A Featuring three connection points, this terminal block ensures efficient electrical connectivity for your projects.
Features and Benefits:
•Compliant with RoHS without exemption.
•Constructed from Wemid material.
•UL 94 flammability rating is V-0.
•End cover plate required; facilitates enhanced safety.
•Snap-on fixing type simplifies installation.
Specifications:
| Depth | 41.5 mm |
| Height | 78 mm |
| Width | 6.1 mm |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Max. voltage (ATEX) | 550 V |
| Current (ATEX) | 29 A |
| Wire cross section max. (ATEX) | 6 mm² |
| Rated voltage | 1,000 V |
| Rated DC voltage | 1,000 V |
| Nominal current | 32 A |
| Current at maximum wires | 32 A |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Mounting rail | TS 35 |
| Stripping length | 12 mm |
| Certificates | {'cURus': 'E60693', 'CSA': '227442-80219640'} |
