Description:

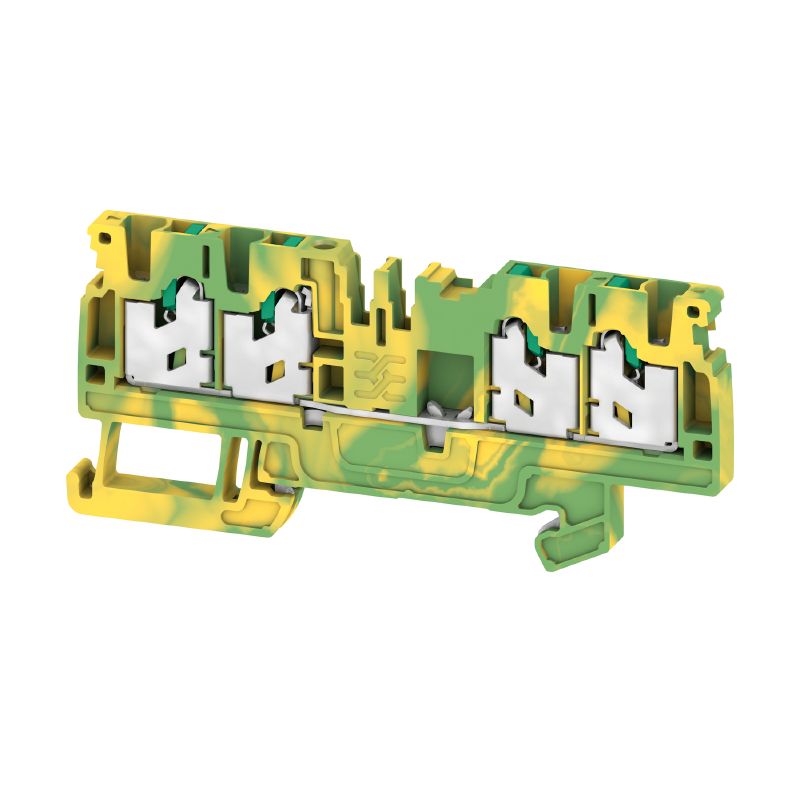

Introducing the S4C 25 PE terminal, the perfect solution for a wide range of electrical connections Engineered to accommodate cable sizes of 25 mm², this terminal features a convenient snap-in design for effortless installation It operates effectively up to a maximum voltage of 800 V and can support up to four connections on a single level, making it highly versatile Crafted from Wemid material, this product adheres to environmental standards, including RoHS compliance.
Engineered to withstand continuous operating temperatures ranging from -60 °C to 130 °C, the S4C 25 PE is built for reliability and performance in various applications.
Features and Benefits:
•Compatible with TS 35 mounting rail.
•Explosion-tested design.

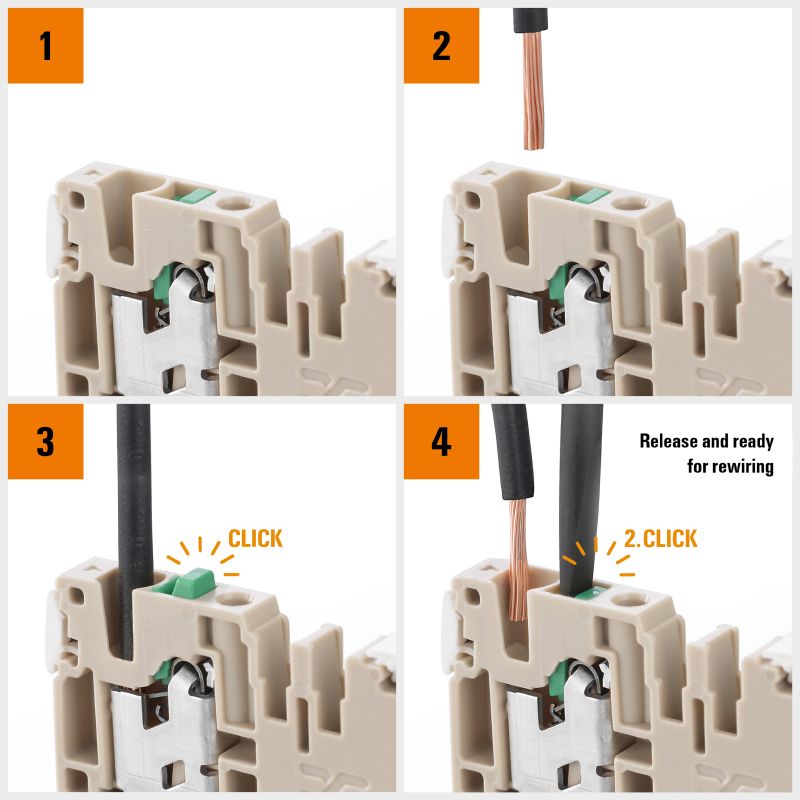

•Snap-on installation type.
•Open sides oriented to the right.
•V-0 flammability rating.
•Suitable for various wire connection types including finely stranded and solid core.
•Compliant with IEC 60947-7-2 standards.
Specifications:
| Depth | 38 mm |
| Height | 84 mm |
| Width | 5.1 mm |
| Net weight | 16.121 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temperature, min | -60 °C |
| Continuous operating temperature, max | 130 °C |

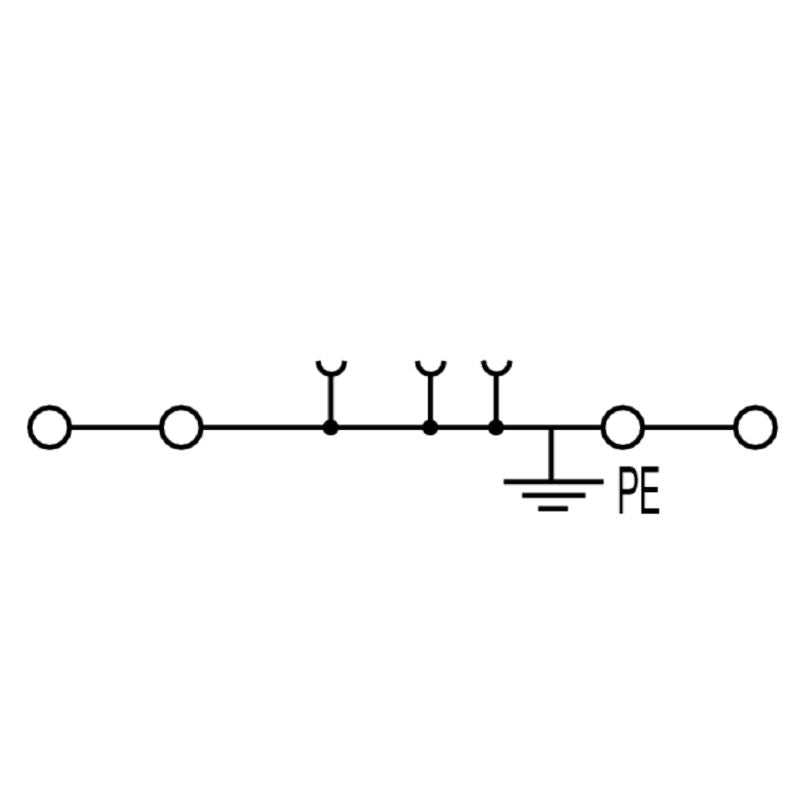

| Number of connections | 4 |
| Rated voltage | 800 V |
| Nominal current | 24 A |
| Rated DC voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Surge voltage category | III |
| Wire cross section max. | 2.5 mm² |
| Wire connection cross-section, solid core, max | 2.5 mm² |
| Gauge to IEC 60947-1 | A2 |
