2875130000 - Orange S3C 2.5mm² Terminal Block, 24A, Snap-In Design (Pack of 100)
2875130000 - Orange S3C 2.5mm² Terminal Block, 24A, Snap-In Design (Pack of 100)
SKU: SKU: 2875130000 Download PDF
- 2875130000 - Orange S3C 2.5mm² Terminal Block, 24A, Snap-In Design (Pack of 100)
- 2875130000 - Orange S3C 2.5mm² Terminal Block, 24A, Snap-In Design (Pack of 100)
Couldn't load pickup availability
Description:

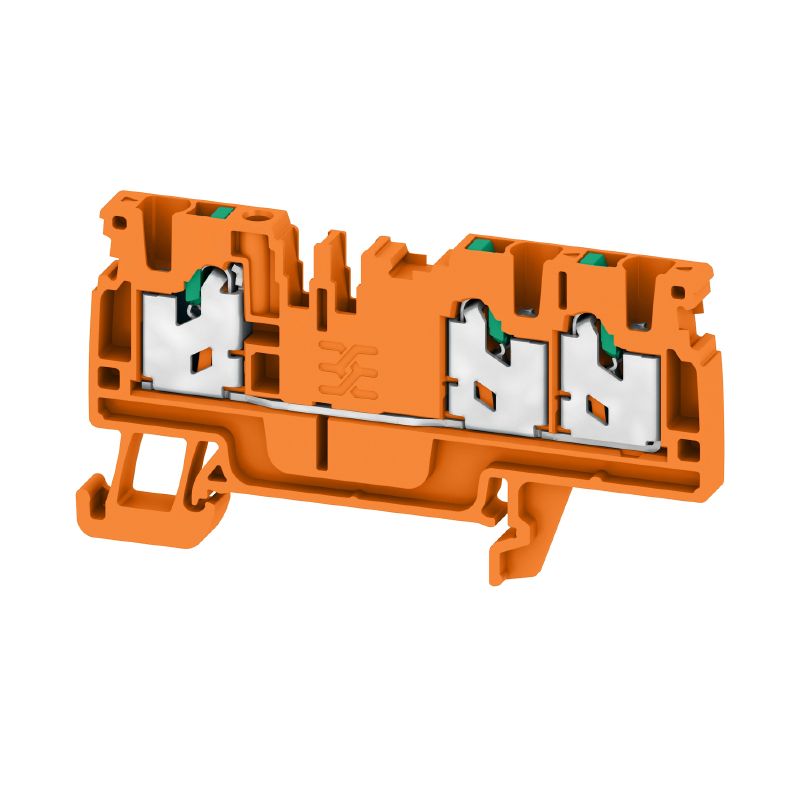

Introducing the S3C 25 OR feed-through terminal block, engineered for efficiency and reliability This snap-in terminal block accommodates wires of 25 mm² and is rated for 24 A and 800 V, providing robust connectivity Its vibrant orange color adds a touch of design to functionality Capable of three connections, it operates effectively within a temperature range of -60 °C to 130 °C Additionally, it meets multiple compliance standards, including RoHS and IEC, ensuring it’s suitable for a variety of applications.
Features and Benefits:
•Snap-in installation for ease of use.
•Number of connections: 3.
•Maximum voltage: 800 V.
•Rated current: 24 A.
•Compliant with IEC standards.
Specifications:
| Depth | 38 mm |
| Height | 71.5 mm |
| Width | 5.1 mm |
| Net weight | 10.948 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp. min | -60 °C |
| Continuous operating temp. max | 130 °C |
| Basic material | Wemid |
| UL 94 flammability rating | V-0 |
| Max voltage (ATEX) | 550 V |
| Current (ATEX) | 21 A |
| Wire cross section max. (ATEX) | 2.5 mm² |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 800 V |
| Nominal current | 24 A |
| Volume resistance according to IEC | 1.33 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Surge voltage category | III |
