Description:

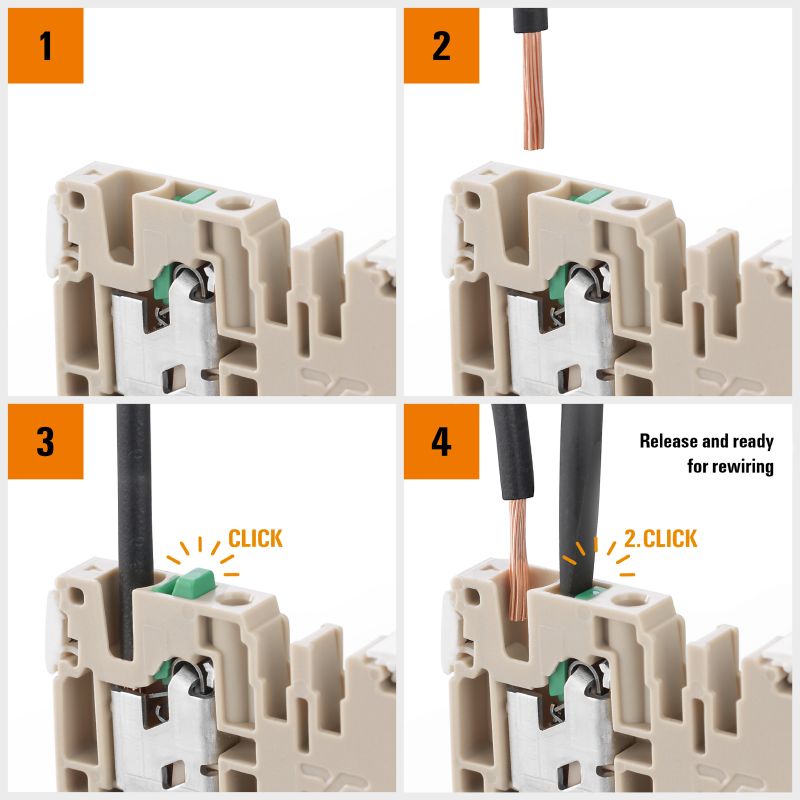

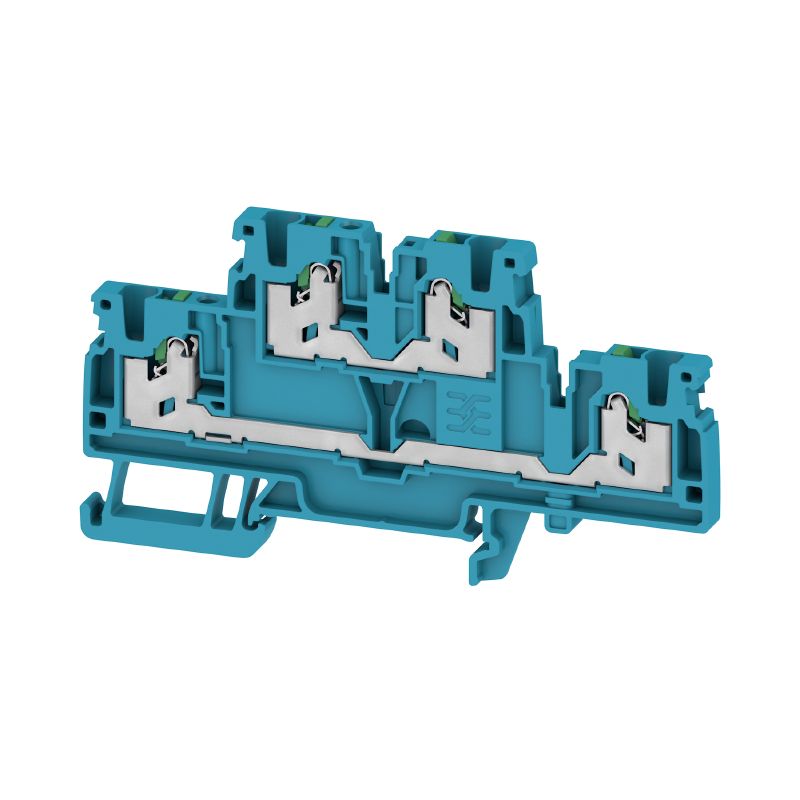

Introducing the S2T 25 BL multi-tier modular terminal, designed with innovative SNAP IN technology for easy installation This terminal accommodates wire cross-sections of 25 mm² and supports a maximum voltage of 800 V Featuring four connections spread across two levels, it is ideal for efficient wiring solutions With RoHS compliance and UL certification (file number E60693), you can trust its quality and safety.
It is suitable for installation on a TS 35 mounting rail and boasts a convenient snap-on fixing method.
Features and Benefits:
•Compliant with RoHS without any exemptions.
•Includes UL certification.
•No need for an additional end cover plate.
•Designed for dual-level connections.
Specifications:
| Depth | 52 mm |
| Height | 95 mm |
| Width | 5.1 mm |
| Net weight | 15.25 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temperature | -60 °C to 130 °C |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 800 V |
| Nominal current | 22 A |
| Number of connections | 4 |
| Wire connection cross section AWG, max | AWG 12 |
| Wire connection cross section AWG, min | AWG 22 |
| Environment compliance | RoHS Compliant |
| UL file number | E60693 |
