2902440000 - Blue Modular Terminal, 2.5 mm², 800 V, 4 Connections (Pack of 50)
2902440000 - Blue Modular Terminal, 2.5 mm², 800 V, 4 Connections (Pack of 50)
SKU: SKU: 2902440000 Download PDF
- 2902440000 - Blue Modular Terminal, 2.5 mm², 800 V, 4 Connections (Pack of 50)
- 2902440000 - Blue Modular Terminal, 2.5 mm², 800 V, 4 Connections (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

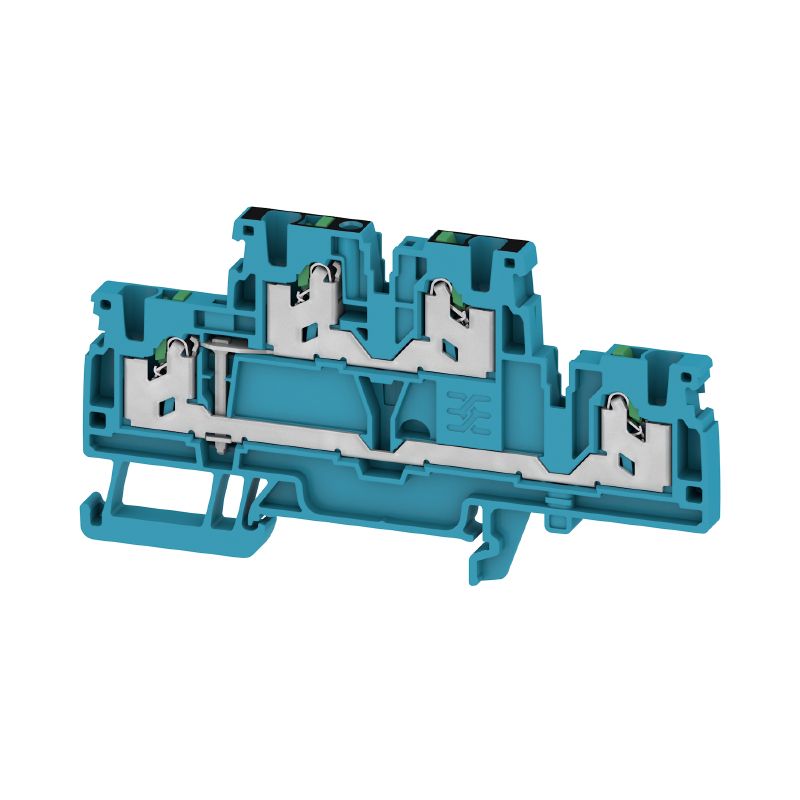

Introducing a versatile multi-tier modular terminal in an eye-catching blue hue Designed for easy installation, this terminal features a wire cross-section of 25 mm² and is capable of handling up to 800 V It provides four connection points spread across two levels when mounted on a TS 35 rail This product meets RoHS standards and comes with various approvals, ensuring its dependability and safety for all your electrical needs.
Features and Benefits:
•Constructed from Wemid material.
•Has a UL 94 flammability rating of V-0.
•Includes a depth of 52 mm and a height of 95 mm.
•Net weight is 15.84 g.
•Operating temperature ranges from -60 °C to 130 °C.
Specifications:
| Depth | 52 mm |
| Height | 95 mm |
| Width | 5.1 mm |
| Storage temperature | -25 °C to 55 °C |
| Rated voltage | 800 V |
| Rated current | 22 A |
| Number of connections | 4 |
| Mounting rail | TS 35 |
| Rated cross-section | 2.5 mm² |
| Current size B (cURus) | 20 A |
| Current size C (cURus) | 20 A |
| Current size D (cURus) | 5 A |
| Wire connection cross section AWG, max | AWG 12 |
| Wire connection cross section AWG, min | AWG 22 |
