2875120000 - Orange 2.5 mm² Terminal Block, 24 A Capacity (Pack of 100)
2875120000 - Orange 2.5 mm² Terminal Block, 24 A Capacity (Pack of 100)
SKU: SKU: 2875120000 Download PDF
- 2875120000 - Orange 2.5 mm² Terminal Block, 24 A Capacity (Pack of 100)
- 2875120000 - Orange 2.5 mm² Terminal Block, 24 A Capacity (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

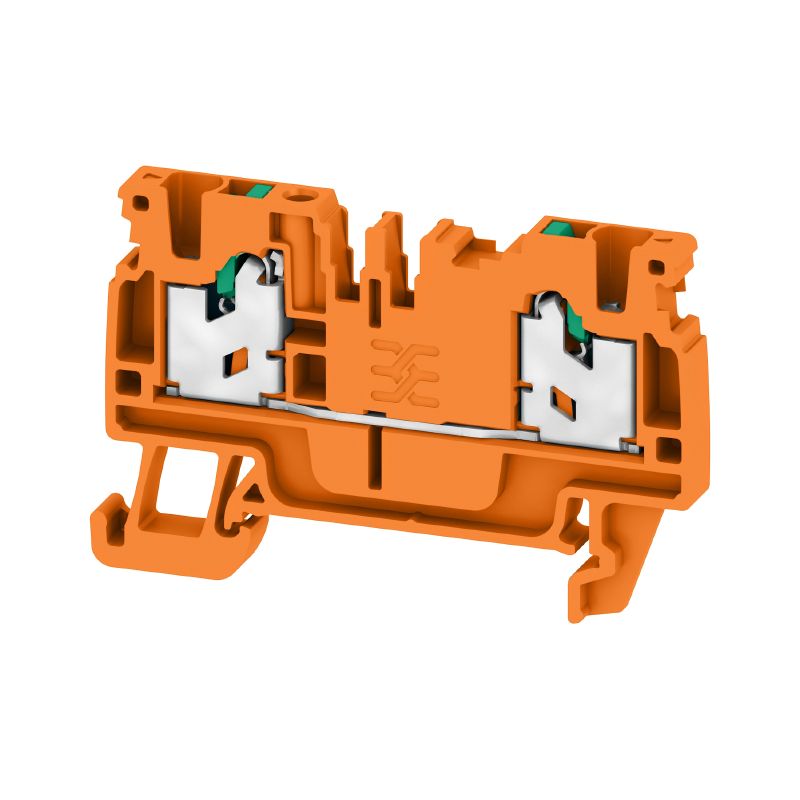

Introducing the S2C 25 OR feed-through terminal block, expertly engineered to accommodate a wire cross-sectional area of 25 mm² This reliable connection component supports a maximum current of 24 A and can handle voltages up to 800 V Featuring two connection points, this terminal block meets stringent safety and environmental regulations, including RoHS compliance Crafted from robust Wemid material, it presents a vibrant orange hue.
Additionally, the S2C 25 OR is built to withstand storage temperatures ranging from -25 °C to 55 °C and is capable of operating continuously in environments as extreme as -60 °C to 130 °C.
Features and Benefits:
•Compliant with RoHS without exemptions.
•UL certified for safety and reliability.
•Constructed from durable Wemid material.
•Snap-in design for easy installation.
•Rated for a wide temperature range.
•Compact size with minimal depth.
Specifications:
| Depth | 38 mm |
| Height | 59 mm |
| Width | 5.1 mm |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 800 V |
| Nominal current | 24 A |
| Operating temperature (min) | -60 °C |
| Operating temperature (max) | 130 °C |
| Environmental compliance | RoHS Compliant |
| Max. voltage (ATEX) | 550 V |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 22 |
| Stripping length | 10 mm |
