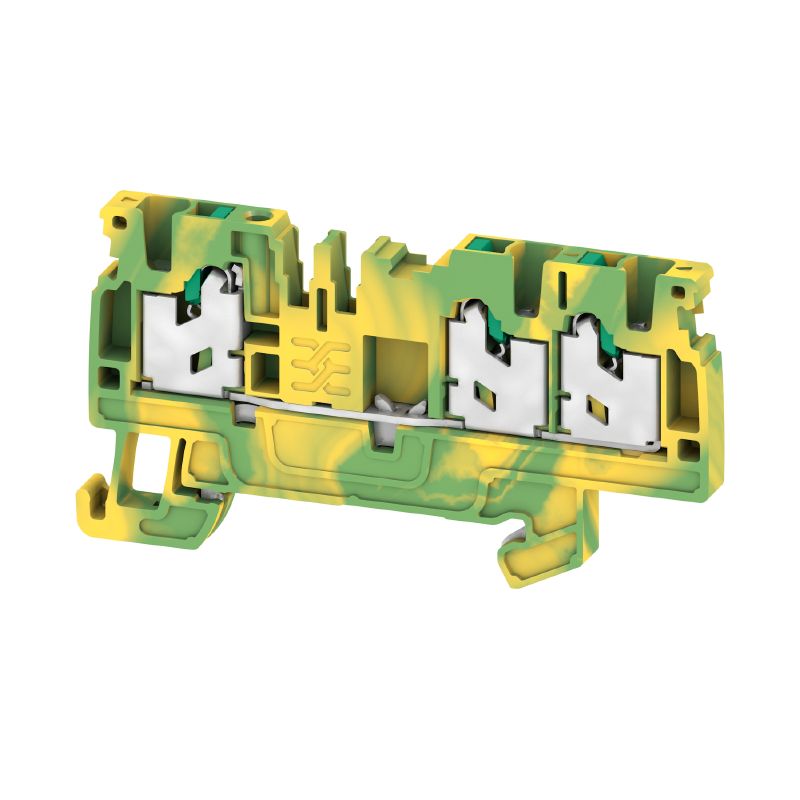

2674570000 - S3C 2.5 PE Green/Yellow Terminal with Snap-In Mechanism (Pack of 50)
2674570000 - S3C 2.5 PE Green/Yellow Terminal with Snap-In Mechanism (Pack of 50)
SKU: SKU: 2674570000 Download PDF
- 2674570000 - S3C 2.5 PE Green/Yellow Terminal with Snap-In Mechanism (Pack of 50)
- 2674570000 - S3C 2.5 PE Green/Yellow Terminal with Snap-In Mechanism (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the S3C 25 PE terminal, expertly crafted for reliable connections This terminal boasts a convenient snap-in mechanism and is suitable for wire sizes up to 25 mm² with an impressive voltage rating of 800 V It offers three connection points in a single layer and adheres to the V-0 flammability standard for safety Constructed from high-quality Wemid material, this terminal features an eye-catching green/yellow color scheme.
Additionally, it complies with RoHS regulations, ensuring it is free of harmful substances, and meets ATEX and IECEx certification for enhanced safety standards.
Features and Benefits:
•Snap-in installation feature.
•Meets IEC 60947-7-2 standards.
•Environmentally friendly, RoHS compliant.
Specifications:
| Depth | 38 mm |
| Height | 71.5 mm |
| Width | 5.1 mm |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Net weight | 13.372 g |
| Rated voltage to adjoining terminal | 800 V |
| Nominal current | 24 A |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 22 |
| UL 94 flammability rating | V-0 |
| Surge voltage category | III |
| Number of connections | 3 |
| Material | Wemid |
| Color | Green/yellow |
