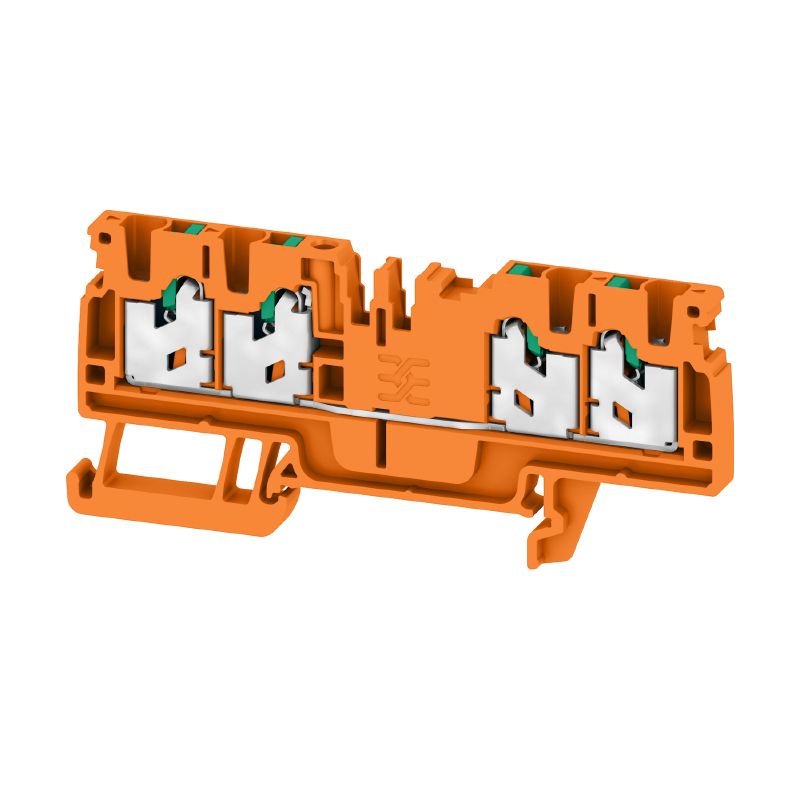

2875140000 - 2.5mm² Snap-In Terminal Block, 24A, Orange, RoHS Compliant (Pack of 100)
2875140000 - 2.5mm² Snap-In Terminal Block, 24A, Orange, RoHS Compliant (Pack of 100)
SKU: SKU: 2875140000 Download PDF
- 2875140000 - 2.5mm² Snap-In Terminal Block, 24A, Orange, RoHS Compliant (Pack of 100)
- 2875140000 - 2.5mm² Snap-In Terminal Block, 24A, Orange, RoHS Compliant (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the versatility of this snap-in feed-through terminal block, designed for effortless connections with four entry points It accommodates wire sizes of 25 mm² and supports a maximum current of 24 A and a voltage of 800 V Crafted from high-quality Wemid material, this terminal block is RoHS compliant, ensuring it meets environmental standards Finished in an eye-catching orange, with operational components in green, it also boasts a UL 94 flammability rating of V-0 for enhanced safety and reliability.
Features and Benefits:
•Snap-in connection type.
•Compatible with a mounting rail TS 35.
•Compliant with RoHS regulations.
•Explosion-tested version is not available.
•Net weight is 13.696 g.
•Rated cross-section of 2.5 mm².
•Temperature range from -60 °C to 130 °C.
Specifications:
| UL File Number | E60693 |
| Certificate No. (cURusEX) | E184763 |
| Depth | 38 mm |
| Height | 84 mm |
| Width | 5.1 mm |
| Storage temperature | -25 °C to 55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Max. voltage (ATEX) | 550 V |
| Current (ATEX) | 21 A |
| Wire cross section max. (ATEX) | 2.5 mm² |
| Number of connections | 4 |
| Nominal current | 24 A |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Standards | IEC 60947-7-1 |
