Description:

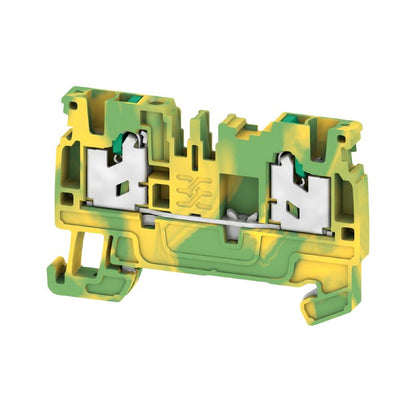

Introducing the S2C 25 PE terminal, crafted with a convenient snap-in design This terminal accommodates wire connections of 25 mm² and operates at an impressive 800 V It features two connection points and is designed for installation on a TS 35 mounting rail Made from robust Wemid material, this product not only promises longevity but also adheres to environmental regulations such as RoHS With its wide operational temperature range of -60 °C to 130 °C, this terminal is built to perform reliably in diverse conditions.
Features and Benefits:
•Green/yellow color.
•Snap-on mounting type.
•Explosion-tested version.
•Compliant with RoHS without exemption.
•Ready for TS 35 mounting rail.
Specifications:
| Depth | 38 mm |
| Height | 59 mm |
| Width | 5.1 mm |
| Net weight | 10.583 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Number of connections | 2 |
| Number of levels | 1 |
| Rated cross-section | 2.5 mm² |
| Rated voltage to adjoining terminal | 800 V |
| Rated DC voltage | 800 V |
| Nominal current | 24 A |
| UL 94 flammability rating | V-0 |
| Certifications | {'cURus': 'E60693', 'IECEX': 'IECEXTUR22.0073U', 'ATEX': 'TUEV22ATEX8925U'} |
