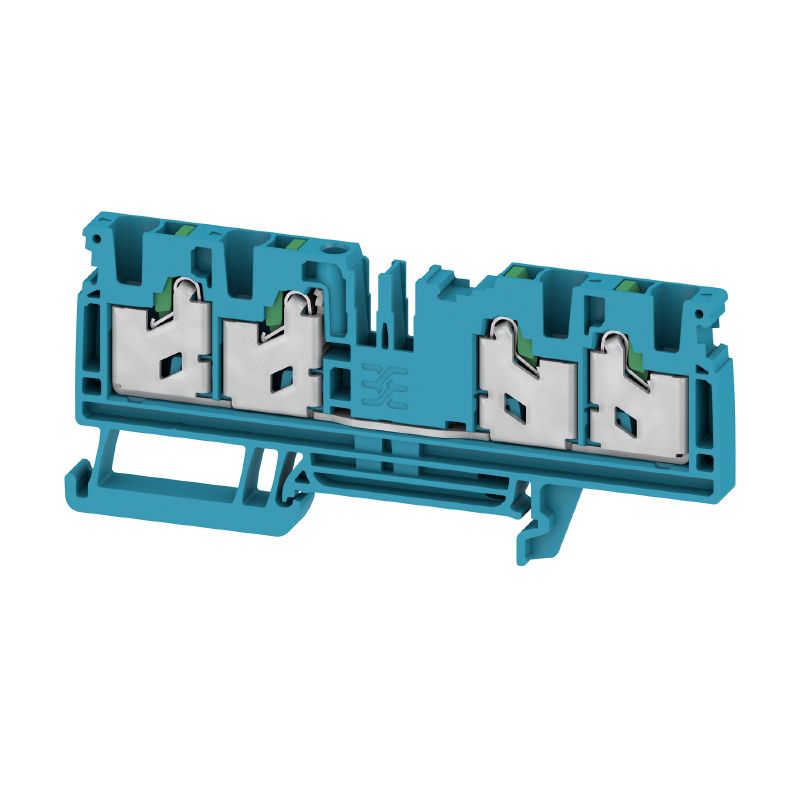

2874870000 - S4C 4 BL Blue 32A Terminal Block with 4 Connections (Pack of 50)
2874870000 - S4C 4 BL Blue 32A Terminal Block with 4 Connections (Pack of 50)
SKU: SKU: 2874870000 Download PDF
- 2874870000 - S4C 4 BL Blue 32A Terminal Block with 4 Connections (Pack of 50)
- 2874870000 - S4C 4 BL Blue 32A Terminal Block with 4 Connections (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the S4C 4 BL feed-through terminal block, expertly designed for simple snap-in installation This versatile block supports wire sizes up to 4 mm², has a 32 A current rating, and can handle voltages as high as 1000 V With four connection points, it offers versatile application options Constructed from materials that meet RoHS compliance, this blue terminal block features vibrant green operational elements.
Its durability has been validated with specific environmental testing, ensuring it meets rigorous performance standards.
Features and Benefits:

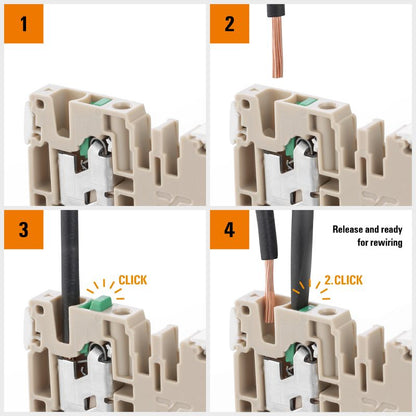

•Easy snap-in mounting.
•Designed for 4 mm² wire connections.
•Current rating of 32 A.
•Maximum voltage rating of 1000 V.
•RoHS compliant without exemptions.
•Material made of Wemid.
•UL 94 flammability rating of V-0.
Specifications:
| Depth | 41.5 mm |
| Height | 94 mm |
| Width | 6.1 mm |
| Storage temperature | -25 °C to 55 °C |
| Continuous operating temperature, min. | -60 °C |
| Continuous operating temperature, max. | 130 °C |
| Number of connections | 4 |
| Rated voltage | 1000 V |
| Rated current | 32 A |
| Wire cross section max. | 6 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 20 |
