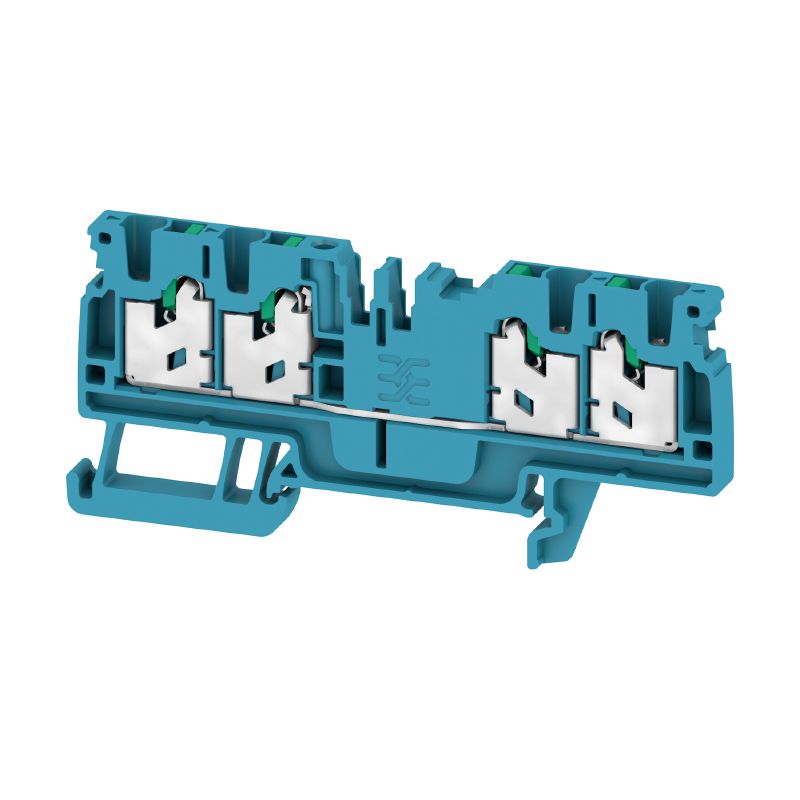

2753960000 - Blue 2.5mm² Feed-through Terminal Block, 24A, Snap-in Design (Pack of 100)
2753960000 - Blue 2.5mm² Feed-through Terminal Block, 24A, Snap-in Design (Pack of 100)
SKU: SKU: 2753960000 Download PDF
- 2753960000 - Blue 2.5mm² Feed-through Terminal Block, 24A, Snap-in Design (Pack of 100)
- 2753960000 - Blue 2.5mm² Feed-through Terminal Block, 24A, Snap-in Design (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the S4C 25 BL feed-through terminal block, expertly crafted for hassle-free snap-in installation This terminal block boasts a vibrant blue body and accommodates wire sizes up to 25 mm² With a current rating of 24 A and a voltage capacity of 800 V, it offers reliable performance Designed with four connection points, it facilitates efficient wiring solutions Additionally, the product meets RoHS standards and is UL certified, including specific certifications for both cURus and cURusEX, ensuring safety and compliance.
Features and Benefits:
•Compliant with RoHS regulations.
•Snap-on installation for quick and efficient mounting.

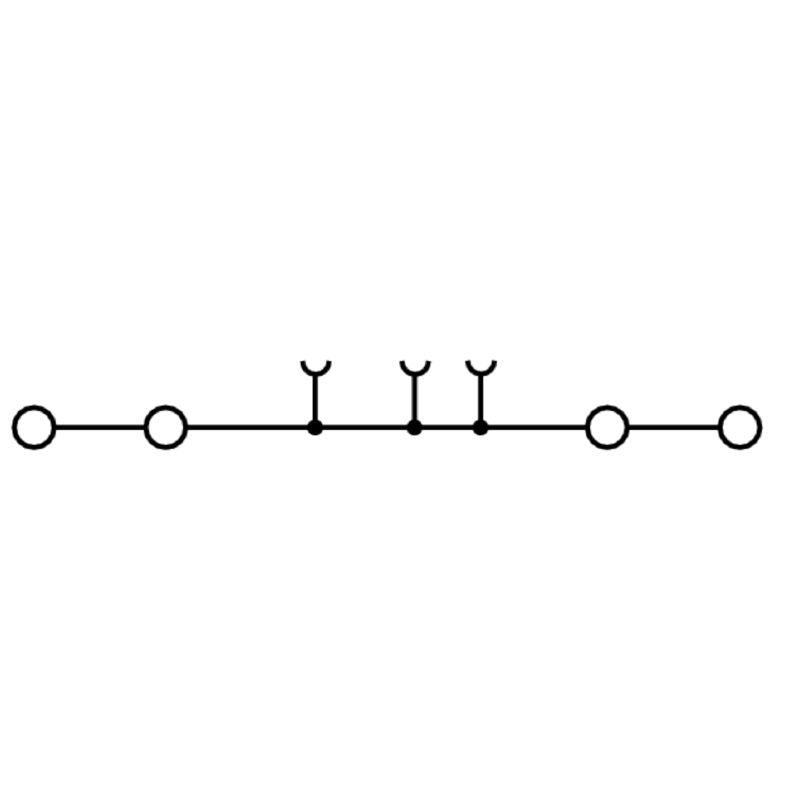

•Four connections to support multiplex wiring.
•No requirement for additional end cover plate.
Specifications:
| Depth | 38 mm |
| Height | 84 mm |
| Width | 5.1 mm |
| Net weight | 1.454 g |
| Storage temperature | -25 °C...55 °C |
| Max voltage (ATEX) | 550 V |
| Current (ATEX) | 21 A |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 800 V |
| Nominal current | 24 A |
| UL rating data | {'Certificate No. (cURus)': 'E60693', 'Current size B (cURus)': '20 A'} |
| Basic material | Wemid |
| Colour | blue |
| Flammability rating | V-0 |
