2874900000 - 4mm² SNAP IN Terminal for Green/Yellow Applications, 1000V (Pack of 50)
2874900000 - 4mm² SNAP IN Terminal for Green/Yellow Applications, 1000V (Pack of 50)
SKU: SKU: 2874900000 Download PDF
- 2874900000 - 4mm² SNAP IN Terminal for Green/Yellow Applications, 1000V (Pack of 50)
- 2874900000 - 4mm² SNAP IN Terminal for Green/Yellow Applications, 1000V (Pack of 50)
Couldn't load pickup availability
Description:

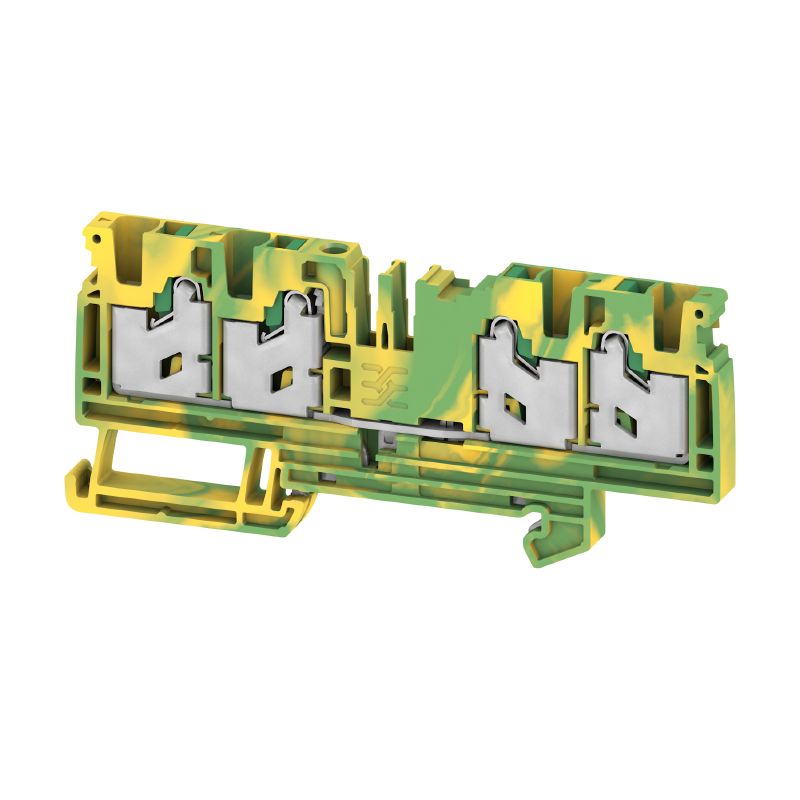

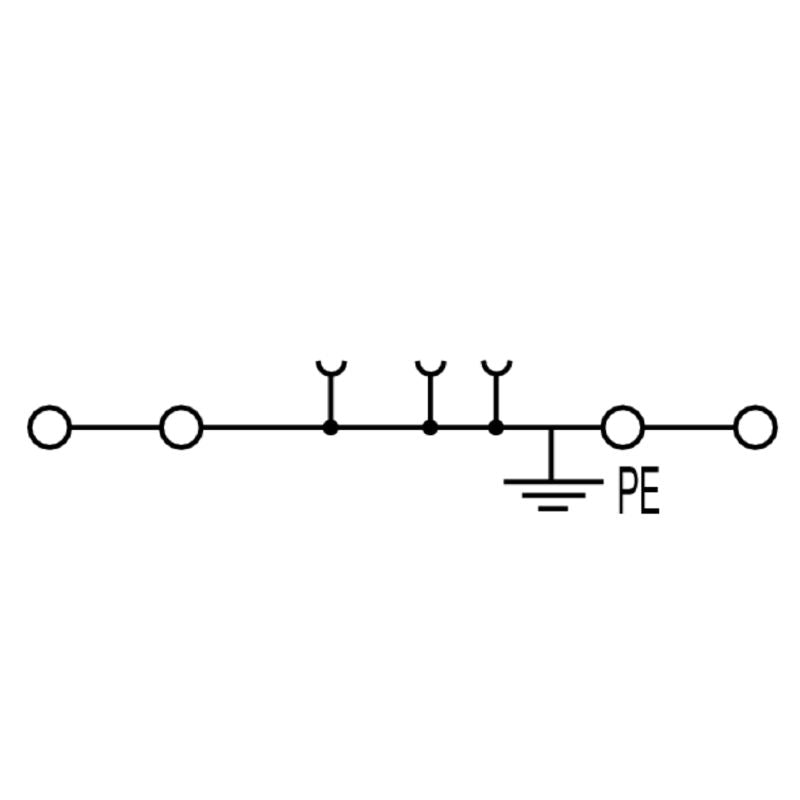

Introducing the S4C 4 PE terminal, a SNAP IN connector ideal for Green/yellow applications Designed to handle a wire cross-section of 4 mm², this terminal can operate efficiently at a maximum voltage of 1000 V It accommodates four connections on a single level and is compatible with TS 35 mounting rails, ensuring easy installation Compliant with RoHS standards and tested against various environmental factors, this terminal is made from Wemid with a flammability rating of UL 94 V-0, making it a reliable choice for secure electrical connections.
Features and Benefits:
•SNAP IN connection type.
•Robust construction with Wemid material.
•Four connection points per level.
Specifications:
| Depth | 41.5 mm |
| Height | 94 mm |
| Width | 6.1 mm |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Rated cross-section | 4 mm² |
| Rated voltage to adjoining terminal | 1000 V |
| Rated DC voltage | 1000 V |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Surge voltage category | III |
| Wire cross section max. (ATEX) | 6 mm² |
| Wire cross section max. (IECEX) | 6 mm² |
| Number of connections | 4 |
| Compliant with RoHS | Yes |
