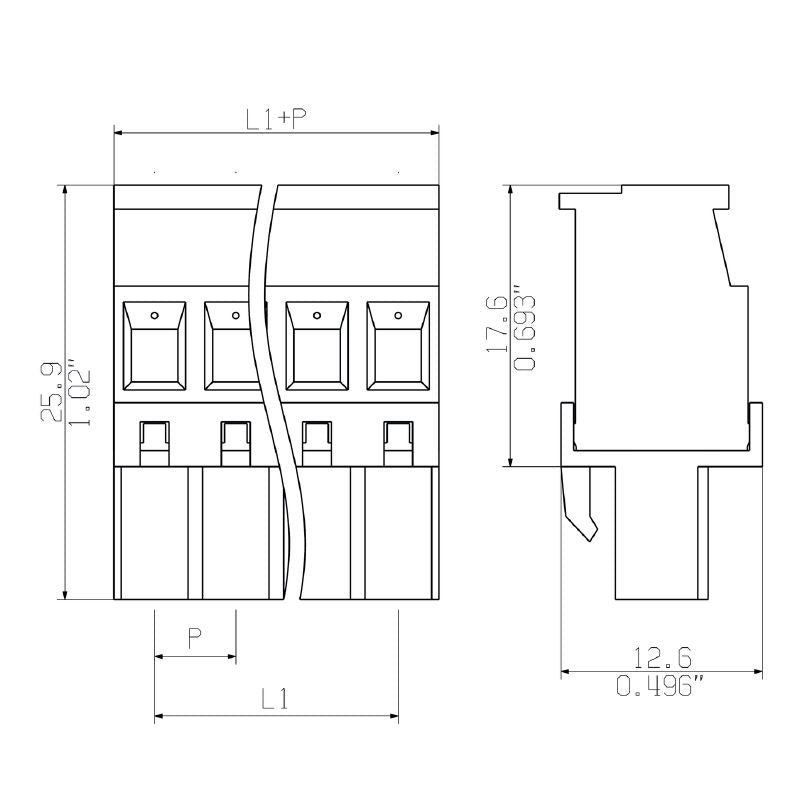

2647540000 - 8-Pole 5.08mm Connection Component with 270° Outlet (Pack of 54)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The CPS 508/08/270 SN GN BX is a robust connection component that meets both RoHS and UL regulations It incorporates a reliable clamping yoke connection method and is engineered to facilitate a conductor outlet direction of 270°, featuring eight poles with a pitch of 508 mm This component is compatible with wire sizes ranging from 02 to 4 mm² (AWG 26 to AWG 14) and supports a maximum rated current of 18 A, with a voltage rating of up to 630 V in accordance with IEC standards.

The product is securely packaged in a box of specified dimensions for easy storage and transport.

Features and Benefits:

•RoHS compliant with exemption.

•UL certified with file number E60693.

•Clamping screw provides a secure connection.

•Color coded as pale green (RAL 6021).

•Designed for eight poles and a single row configuration.

•Offers a generous stripping length of 7 mm.

•Designed for use in electrical connections and fixtures requiring field connection.

Specifications:
