2648230000 - 5.08mm Pitch 8-Pole Connector with 270° Outlet (Pack of 45)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

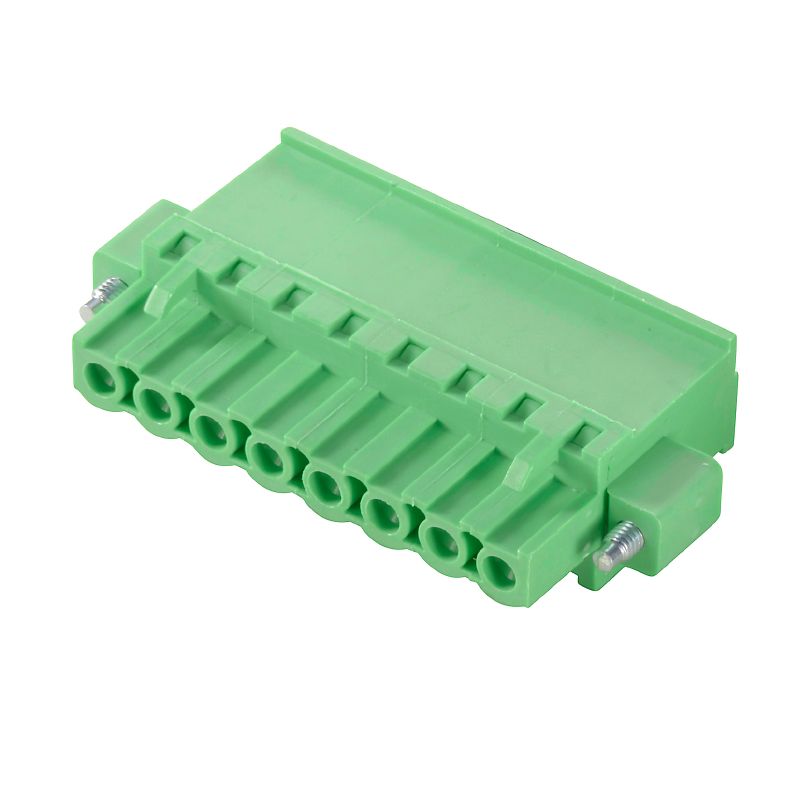

Introducing the CPS 508/08/270F SN GN BX, a reliable product that meets various regulatory approvals, including RoHS compliance This connector is ideal for field applications and utilizes a clamping yoke for secure wire connections With a pitch of 508 mm and featuring 8 poles with a 270° conductor outlet, it enhances versatility and connectivity Additionally, it is designed to work seamlessly with OMNIMATE basic products, making it an excellent choice for a wide range of uses.

Features and Benefits:

•Suitable for clamping a wide range of wire cross-sections from 0.2 mm² to 4 mm².

•Insulating material is PA with a low flammability rating of V-0.

•Features a maximum pulling force of 6 N and a plugging force of 9 N per pole.

•Can endure a storage temperature range from -40 °C to 70 °C and an operating temperature up to 105 °C.

Specifications:
