2649240000 - 5.08mm Pitch Electrical Connector with 9 Poles and Solder Pins (Pack of 150)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

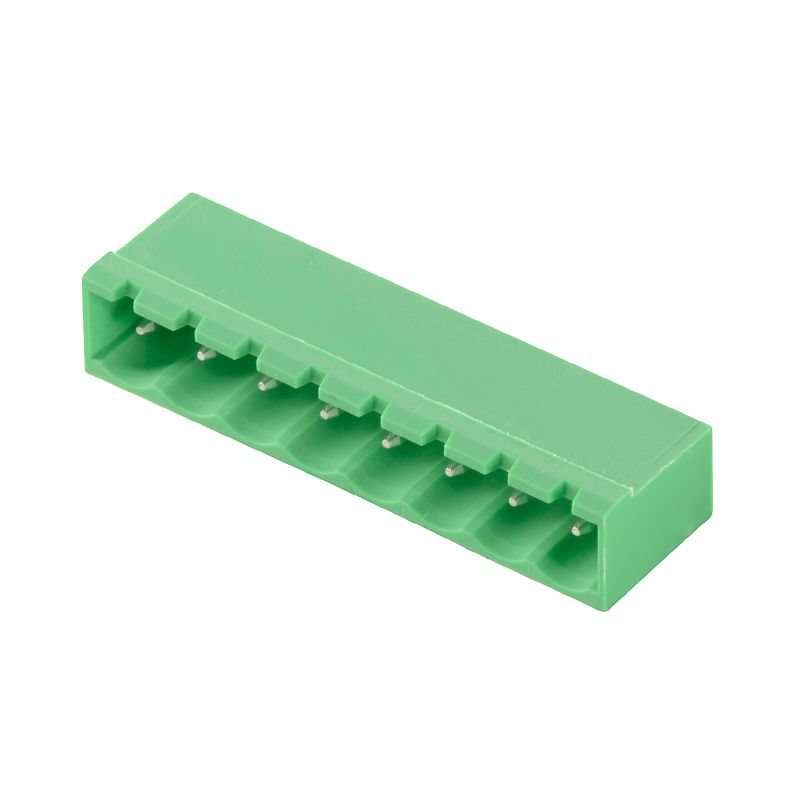

Introducing the CH 508/09/90G 39SN GN BX, an essential component for various electrical applications, backed by specific approval certifications This product adheres to RoHS standards without any exemptions and contains no REACH SVHC substances over 01 wt% Designed with a board connection style, it utilizes a reliable through-hole solder connection and features a 508 mm pitch with 9 poles—each equipped with a solder pin measuring 3.

9 mm in length The structure is made from a pale green insulating material, ensuring robust performance It meets the voltage and current specifications set forth by IEC and CSA, guaranteeing dependable functionality for your electrical projects.

Features and Benefits:

•RoHS compliant without exemption.

•Solder eyelet hole diameter of 1.6 mm.

•Insulating material is of PA GF type.

•UL 94 flammability rating of V-0.

•Tinned contact surface with a matt finish.

•Long-term storage at 50 °C and 70% humidity for up to 36 months.

•Compatible only with OMNIMATE basic products.

Specifications:
